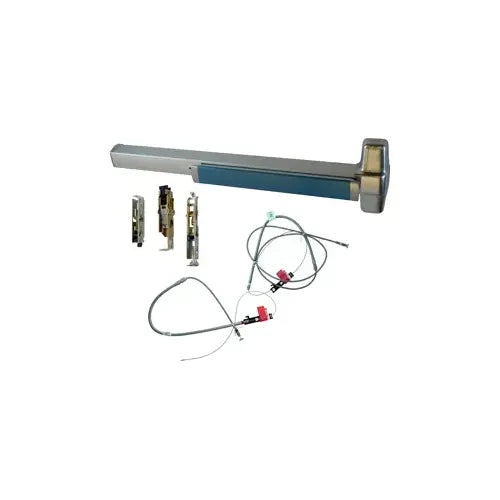

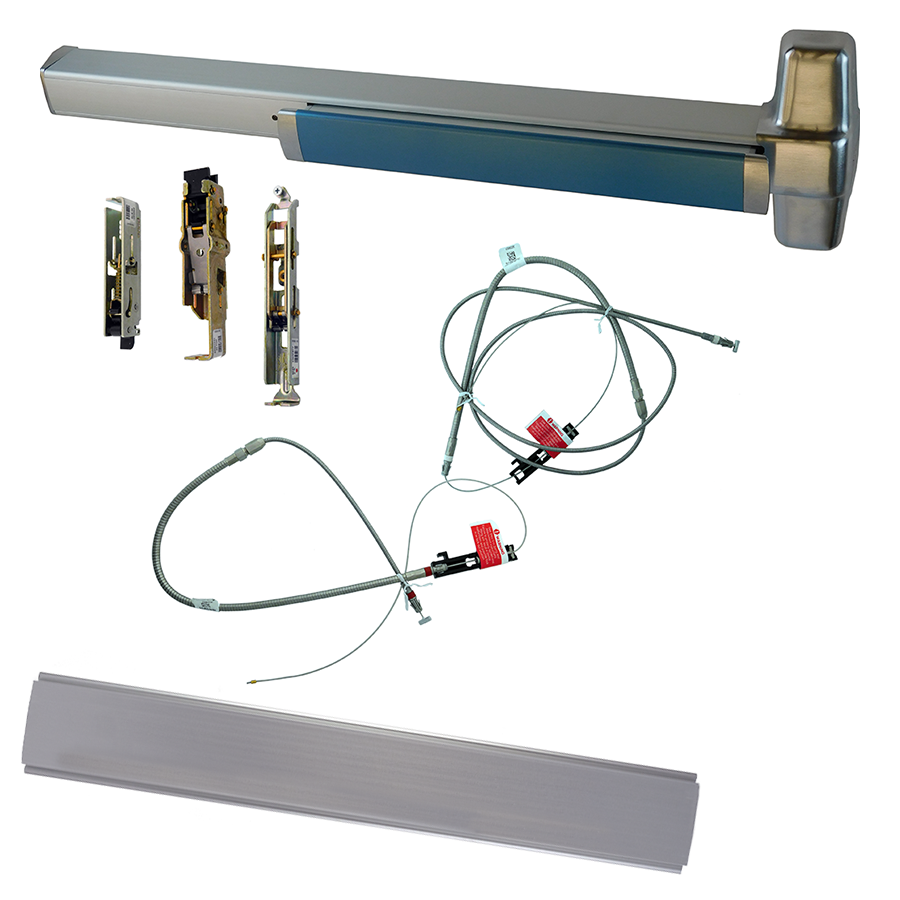

VON DUPRIN 9849EO-626-48 CVC Concealed Vertical Cable Exit Device Exit Only No Trim 48

Product Description

The VON DUPRIN 9849EO-626-48 is a concealed vertical cable exit device designed specifically for exit-only functionality. This unit is ideal for doors exceeding eight feet in height. It functions without trim and is suitable for various door types, including aluminum, hollow metal, and wood.

• Exit-only design enhances security and control
• Concealed vertical cable mechanism supports a clean aesthetic
• Compatible with VON47250177 for doors up to 10 feet 4 inches

Product Highlights

The device incorporates hex key dogging and a push bar style, making it efficient and user-friendly.

Product Information

Standard Information

• Handing: Field Reversible
• Function: Exit Only

Technical Specifications

• Door Width: 48 inches
• Door Type: Aluminum, Hollow Metal, Wood
• Exit Device Type: CVC - Concealed Vertical Cable
• Dogging: Hex Key
• Bar Style: Push Bar
