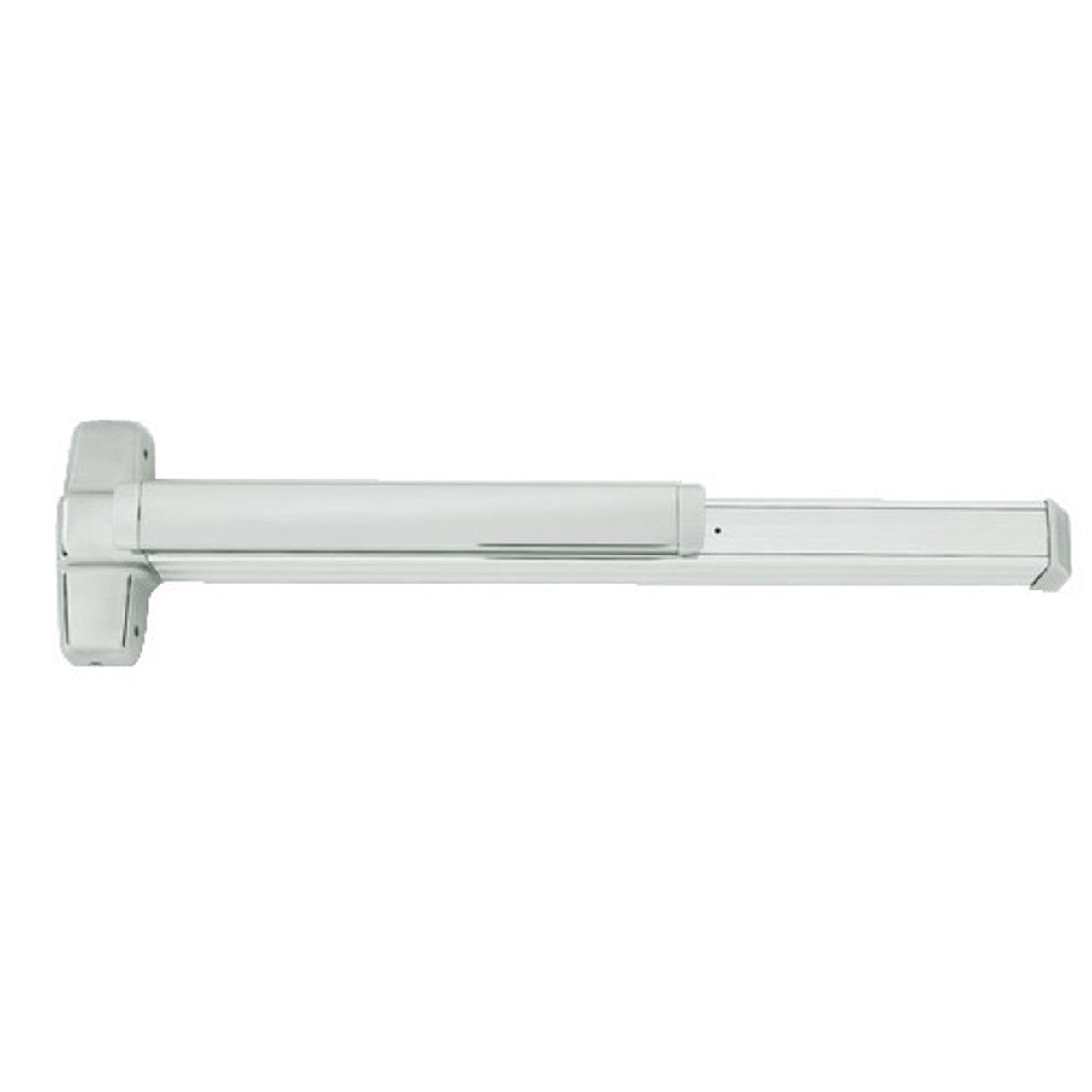

VON DUPRIN 9849EO-626-36 9849 Series Exit Only Fire Rated Concealed Vertical Cable Exit Device 36 inch

Product Description

The VON DUPRIN 9849EO-626-36 is a fire-rated concealed vertical cable exit device for metal doors. It is suitable for both single and double doors. Made from heavy-gauge rolled steel, this device features a reliable touch bar mechanism. It is UL listed for fire-rated exits and meets ANSI A156.3, 2008 Grade 1 standards, making it ideal for high-traffic areas.

• Fire rated and certified to ANSI A156.3, 2008 Grade 1
• Non-handed operation offers flexibility
• Suitable for door openings of six feet eight inches to eight feet four inches

Product Highlights

Product Information

Standard Information

• Door Width: 3 feet
• Fire Rated: Yes

Technical Specifications

• Trim: EO - Exit Only
• Handing: Non Handed
• Device Length: 3 feet (914 mm)
• Fasteners: Includes screw pack for one and three quarter inch (44 mm) and two and one quarter inch (57 mm) thick metal doors
• Mechanism Case Dimensions: 2-1/4 inches x 2-1/4 inches (57 mm x 57 mm)
• Strike: Top - 249 and bottom - 349 unfinished strikes included
• Latch Bolt: Deadlocking anti-friction top and bottom bolt with five eighths inch (16 mm) throw
• Device Centerline from Finished Floor: thirty-nine and five eighths inches (1006 mm)
• Vertical Cable: seven thirty-seconds inch (6 mm) diameter stainless steel cables
