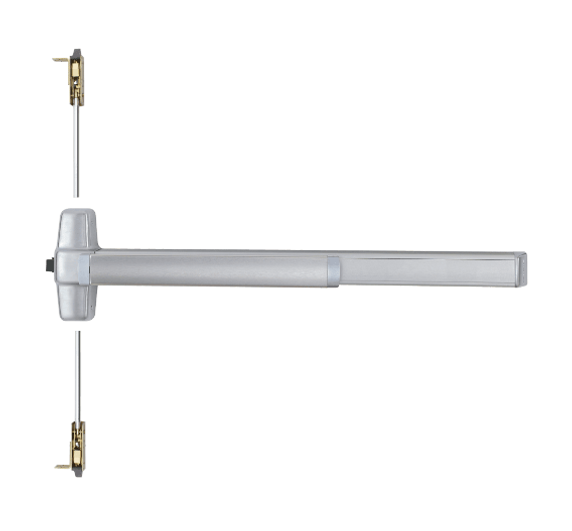

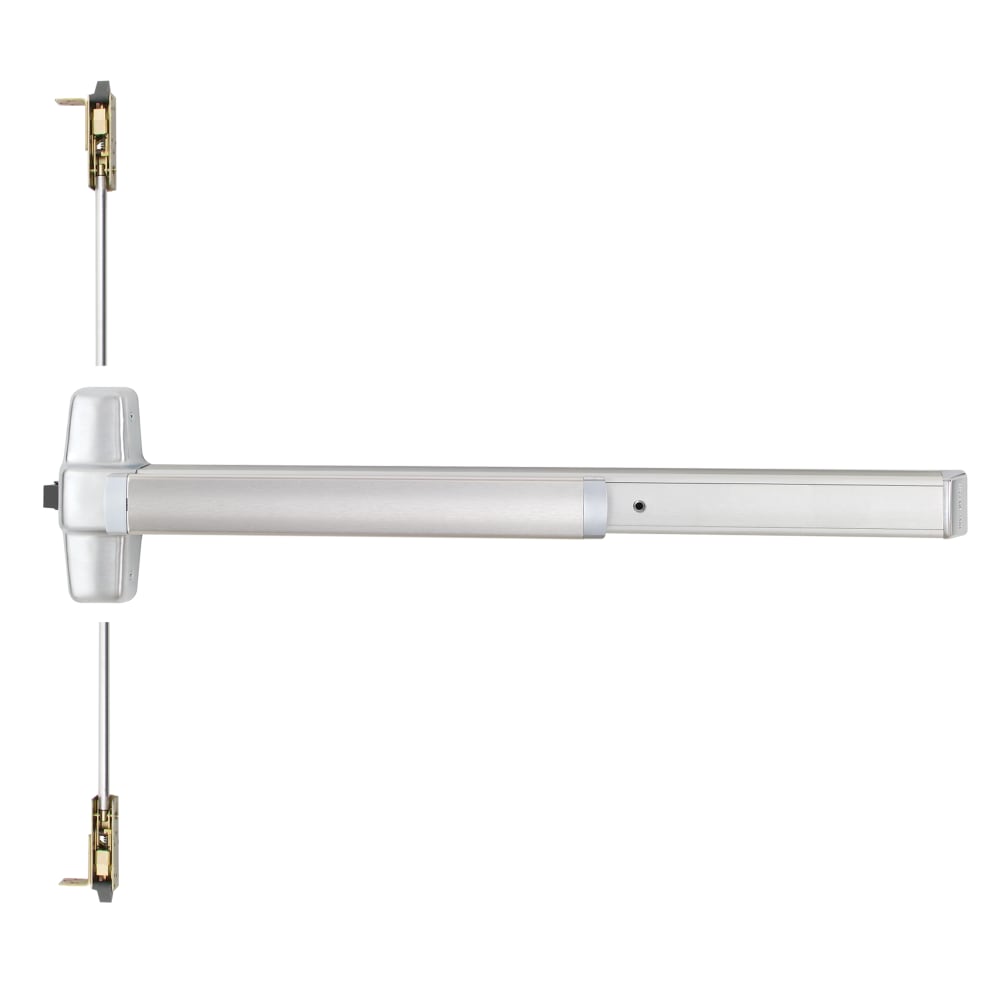

VON DUPRIN 9847EO-711-36 CVR Concealed Vertical Rod Exit Device 36inch Hex Dogging

Product Description

The VON DUPRIN 9847EO-711-36 CVR Concealed Vertical Rod Exit Device is suitable for both single and double metal doors. This device is UL listed for panic exit hardware, ensuring safety and reliability. It is made of durable materials and meets ANSI A156.3-2008 compliant standards. The design features a smooth mechanism case, allowing it to be easily operated in various conditions.

• Grade 1 quality for superior durability
• Concealed vertical rod mechanism for better aesthetics
• Hex key dogging for enhanced security

Product Highlights

This concealed vertical rod exit device is field reversible, making it adaptable to different door setups. Ideal for commercial applications, it securely locks steel and metal doors while providing a reliable exit solution.

Product Information

Standard Information

• Manufacturer: Von Duprin
• Grade: Grade 1

Technical Specifications

• Installation: Commercial
• Unit of Measure: Each
• UL Listing Type: UL 305
• ANSI Number: A156.3
• Device Length: 36 inches
• Door Width: 28 inches to 36 inches
• Door Height: 80 inches to 100 inches
• Minimum Stile Size: 3-11/16 inches
• Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
• Finish Code: 711
• Device Type: Concealed Vertical Rod
• Dogging Options: Hex Key Dogging
• Device Width: 36 inches
