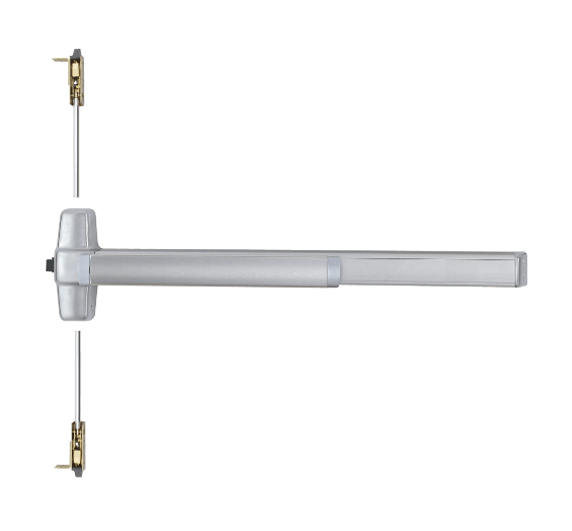

VON DUPRIN 9847EO-626-36 36inch 9847EO-F Fire Rated Concealed Vertical Rod Device

Product Description

The VON DUPRIN 9847EO-626-36 is a grade 1 concealed vertical rod exit device for metal doors. This exit-only device has a field reversible design, allowing for easy installation on various door sizes. It can fit doors from two feet four inches to three feet wide and two feet ten inches to four feet wide. The adjustable centerline accommodates heights from thirty-five and five-eighths inches to forty-nine and five-eighths inches, making it versatile for different applications.

• Grade 1 concealed vertical rod device
• Designed for exit-only functionality
• Field reversible for ease of installation

Product Highlights

This exit device is suitable for aluminum, hollow metal, or wood doors and is perfect for fire rated applications, ensuring safe and efficient exits in emergencies.

Product Information

Standard Information

• Device Type: Exit Only
• Door Width: 36 inches

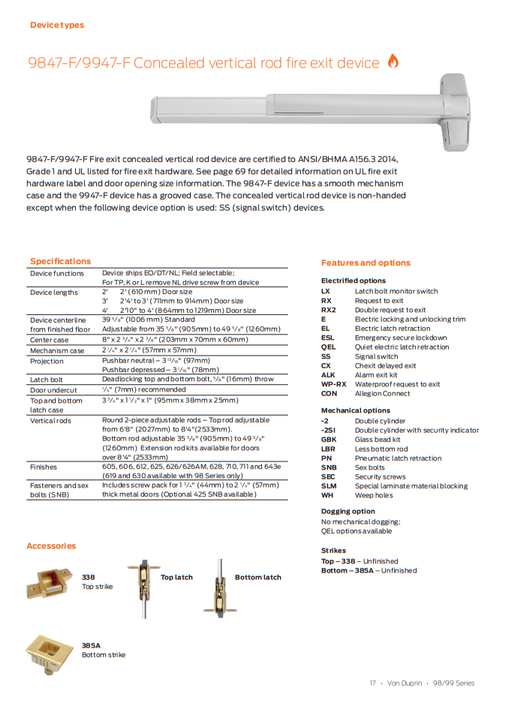

Technical Specifications

• Device Length: 3 feet
• Door Size Range: 2 feet 4 inches to 3 feet (711mm to 914mm) and 2 feet 10 inches to 4 feet (864mm to 1219mm)
• Adjustable Centerline: 35 5/8 inches to 49 5/8 inches (905mm to 1260mm)
• Center Case Dimensions: 8 inches x 2 3/4 inches x 2 3/8 inches (203mm x 70mm x 60mm)
• Mechanism Case Dimensions: 2 1/4 inches x 2 1/4 inches (57mm x 57mm)
• Projection: Pushbar neutral 3 13/16 inches (97mm) and depressed 3 1/16 inches (78mm)
• Latch Bolt: Deadlocking top and bottom bolt, 5/8 inches (16mm) throw
• Door Undercut: Recommended 1/4 inches (7mm)
• Vertical Rods: Adjustable two-piece round rods
• Fasteners: Includes screw pack for 1 3/4 inches to 2 1/4 inches thick metal doors
• Handing: Field reversible
• Dogging: Hex Key
• Exit Device Type: Concealed Vertical Rod
