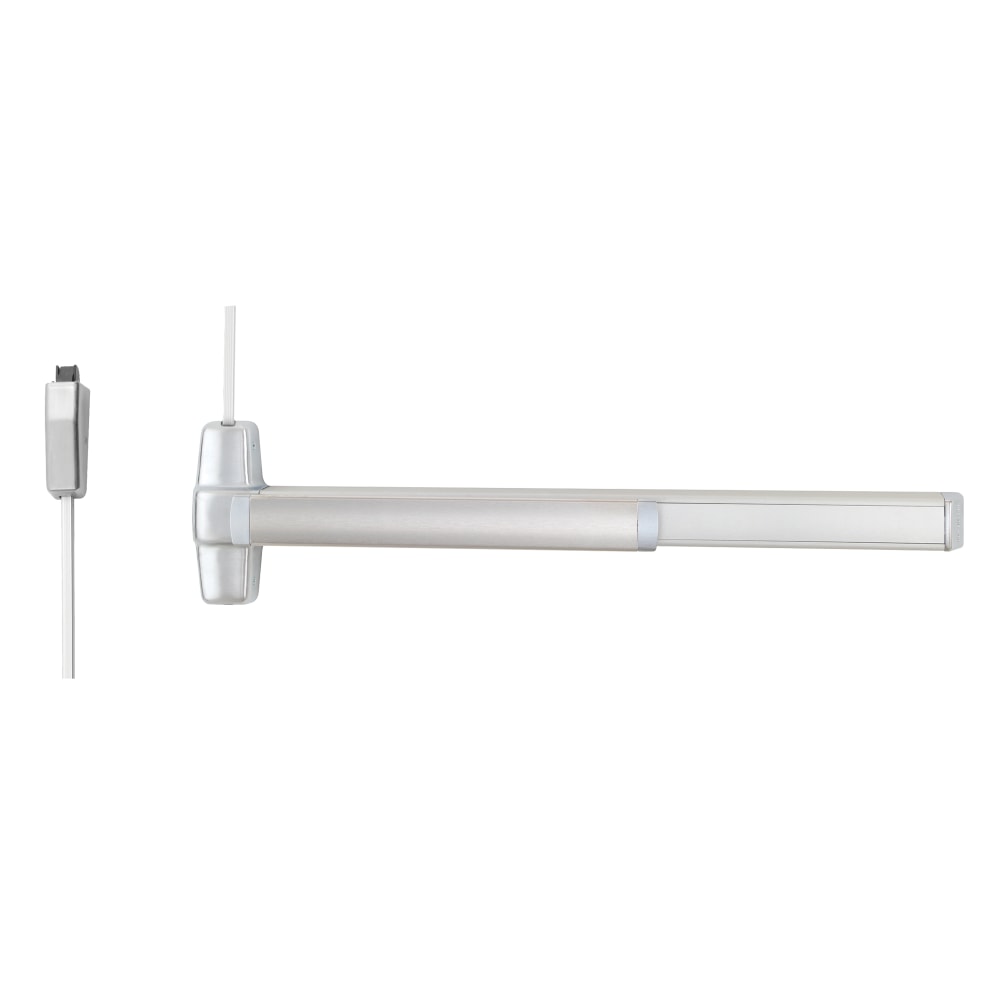

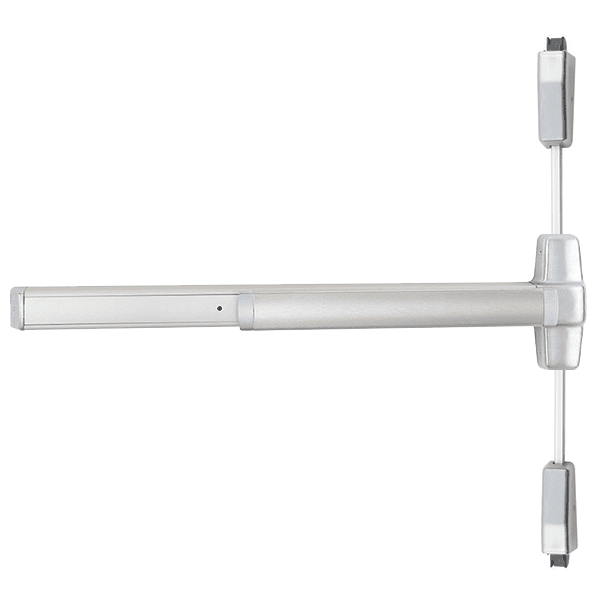

Von Duprin 9827EO-F-626-36 3'0 Surface Vertical Rod Exit Device

Product Description

The Von Duprin 9827EO-F-626-36 is a surface mounted vertical rod exit device designed for both single and double doors. This device is UL listed for fire exit and panic exit hardware. It meets ANSI A156.3 Grade 1 standards, ensuring high performance in demanding environments.

• Designed for heavy use in institutional applications
• UL listed for fire exit hardware, model 9827F
• Manufactured in compliance with the Buy American Act

Product Highlights

This exit device features a robust design suitable for commercial applications. It offers reliability and security, making it ideal for locations requiring emergency exit solutions.

Product Information

Standard Information

• Brand: Von Duprin
• Manufacturer: Von Duprin

Technical Specifications

• Finishes: Available in various finishes including Duranodic Dark Bronze, Bright Brass, Satin Brass, Satin Bronze, and more
• Length: 3 feet (compatible with two feet four inches to three feet doors)
• Hand: Non-handed
• Usage: Heavy Duty
• Fire Rating: UL Listed A or B label Fire-Rated (3 Hours)
• Vertical Rods: Accommodate doors up to 7 feet, can be cut to specification in the field
• Strikes: Includes 299 Top Strike and 304L Bottom Strike
• Latchbolt: Deadlocking anti-friction top & bottom bolt, 5/8 inch throw
• Unit of Measure: Each
• Device Type: Surface Vertical Rod Device
• Installation: Commercial
• Mechanical Function: Exit Only, Accepts Various Trim
• Device Length Options: 36 inches or 48 inches
• Top Strike Type: 499F
• Minimum Stile Size: 3-11/16 inches
• Door Width: 28 to 36 inches or 34 to 48 inches
• Door Height: 84 inches
• Door Thickness: 1-3/4 inches
