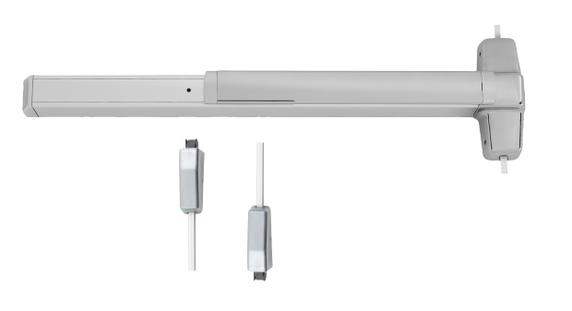

VON DUPRIN 9827EO-711-48 Surface Vertical Rod Device Exit Only

Product Description

The VON DUPRIN 9827EO-711-48 is a grade 1 surface vertical rod device built specifically for exit-only applications. It features hex key dogging and is designed to be field reversible. This device is suitable for doors with a one quarter inch undercut. It includes a screw pack for installation on doors that are one and three quarters inches to two and a quarter inches thick, whether metal or wood.

• Grade 1 surface vertical rod device
• Exit only functionality
• Field reversible for various installations

Product Highlights

The VON DUPRIN 9827EO-711-48 provides security and ease of use, making it ideal for commercial exit doors.

Product Information

Standard Information

• Device Functions: EO - Exit Only
• Device Lengths: 3 feet (711mm to 914mm) for doors sized 4 feet (864mm to 1219mm)

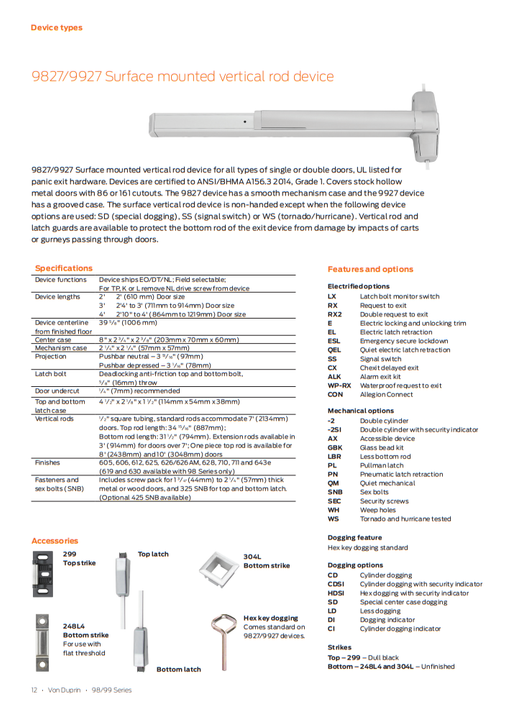

Technical Specifications

• Centerline from Finished Floor: 39 5/8 inches (1006 mm)
• Center Case Dimensions: 8 x 2 3/4 x 2 3/8 inches (203mm x 70mm x 60mm)
• Mechanism Case Dimensions: 2 1/4 x 2 1/4 inches (57mm x 57mm)
• Pushbar Projection: Neutral 3 13/16 inches (97mm), Depressed 3 1/16 inches (78mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8 inches (16mm) throw
• Recommended Door Undercut: 1/4 inches (7mm)
• Top and Bottom Latch Case Dimensions: 4 1/2 x 2 1/8 x 1 1/2 inches (114mm x 54mm x 38mm)
• Vertical Rods: 1/2 inch square tubing, standard rods accommodate doors up to 7 feet (2134mm). Top rod length: 34 15/16 inches (887mm); Bottom rod length: 31 1/2 inches (794mm).
