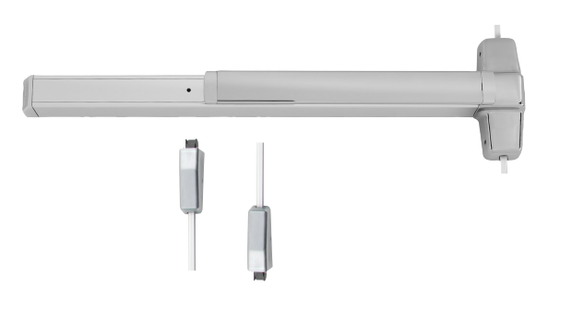

VON DUPRIN 9827EO-710-36 Surface Vertical Rod Device Exit Only Smooth Case

Product Description

The VON DUPRIN 9827EO-710-36 is a grade 1 surface vertical rod device designed specifically for exit-only applications. This device features hex key dogging and is reversible for field installation. Built for emergency exit scenarios, it has a smooth operating case for reliable performance.

• Grade 1 surface vertical rod device
• Exit-only function for safety
• Field reversible for easy installation

Product Highlights

This device offers essential functionality for secure exits in commercial buildings.

Product Information

Standard Information

• Device functions: EO - Exit Only
• Model: Von Duprin 9827EO

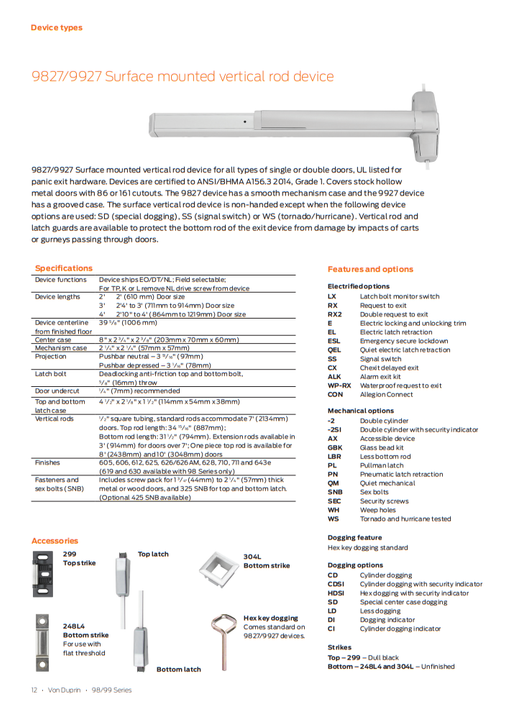

Technical Specifications

• Device lengths: 3 feet (711mm to 914mm) and 4 feet (864mm to 1219mm)
• Centerline from finished floor: 39 5/8 inches (1006 mm)
• Center case dimensions: 8 inches x 2 3/4 inches x 2 3/8 inches (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4 inches x 2 1/4 inches (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16 inches (97mm), Pushbar depressed – 3 1/16 inches (78mm)
• Latch bolt: Deadlocking anti-friction top and bottom bolt with a 5/8 inch (16mm) throw
• Recommended door undercut: 1/4 inch (7mm)
• Top and bottom latch case dimensions: 4 1/2 inches x 2 1/8 inches x 1 1/2 inches (114mm x 54mm x 38mm)
• Vertical rods: 1/2 inch square tubing suitable for 7 feet (2134mm) doors; top rod length is 34 15/16 inches (887mm) and bottom rod length 31 1/2 inches (794mm)
• Available finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 625 - Bright Chrome, 626 - Satin Chrome, 628 - Satin Aluminum Clear Anodized, 710 - Dark Bronze Anodized Aluminum, 711 - Black Anodized Aluminum, 643E - Aged Bronze
• Included fasteners: Screw pack for doors from 1 3/4 inches (44mm) to 2 1/4 inches (57mm) thick
