Von Duprin 9827EO-626-48 Surface Vertical Rod Exit Device

Product Description

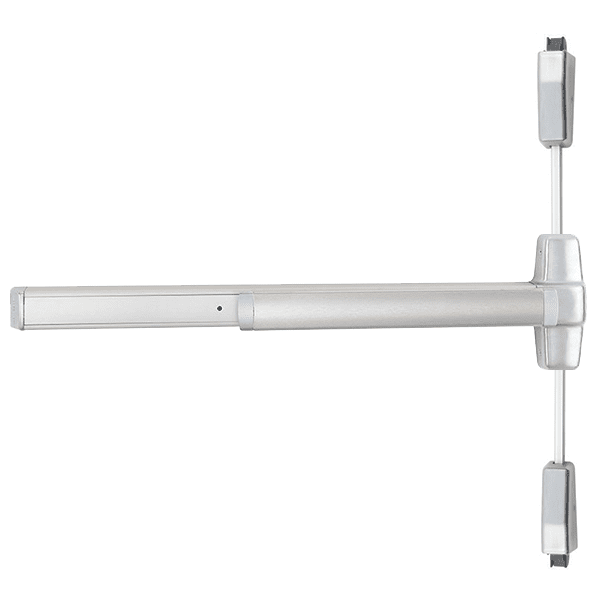

The Von Duprin 9827EO-626-48 is a reliable surface mounted vertical rod exit device suitable for single or double doors. This model complies with ANSI A156.3-2014 Grade 1 standards and is UL listed, making it an appropriate choice for schools, hospitals, and government buildings. It is designed for stock hollow metal doors featuring 86 or 161 cutouts and is compatible with doors that are one and three-quarters inches thick.

• Compatible with high traffic environments
• Model 9827F is UL listed for fire exit situations
• Manufactured according to the Buy American Act

Product Highlights

This exit device is built for heavy use and is ideal for institutional settings.

Product Information

Standard Information

• Brand: Von Duprin
• Length: Three feet for doors twenty-four inches to thirty inches, four feet for doors thirty-one inches to forty inches

Technical Specifications

• Hand: Non-handed
• ANSI Grade: Certified ANSI A156.3-2001 Grade 1 standards
• Usage: Heavy Duty
• Fire Rating: 9827-EO is Non-Fire-Rated; 9827-EO-F is UL Listed A or B label Fire-Rated for three hours
• Vertical Rods: Accommodates doors up to seven feet and can be cut to specification in the field
• Strikes: Includes various strike options for different applications
• Latchbolt: Deadlocking with anti-friction top and bottom bolt, five-eighths inch throw
• Fasteners: Comes with screws for both metal and wood doors
• Projections: Neutral pushbar projects three and thirteen-sixteenths inches
• Center Case: Measures eight inches by two and three-quarters inches by two and three-eighths inches
• Stile Type: Wide (Standard)
• Dogging Feature: Hex key dogging is standard on non-fire-rated devices
• Device Type: Surface Rod Device
• Door Applications: One and three-quarters inch thick doors
