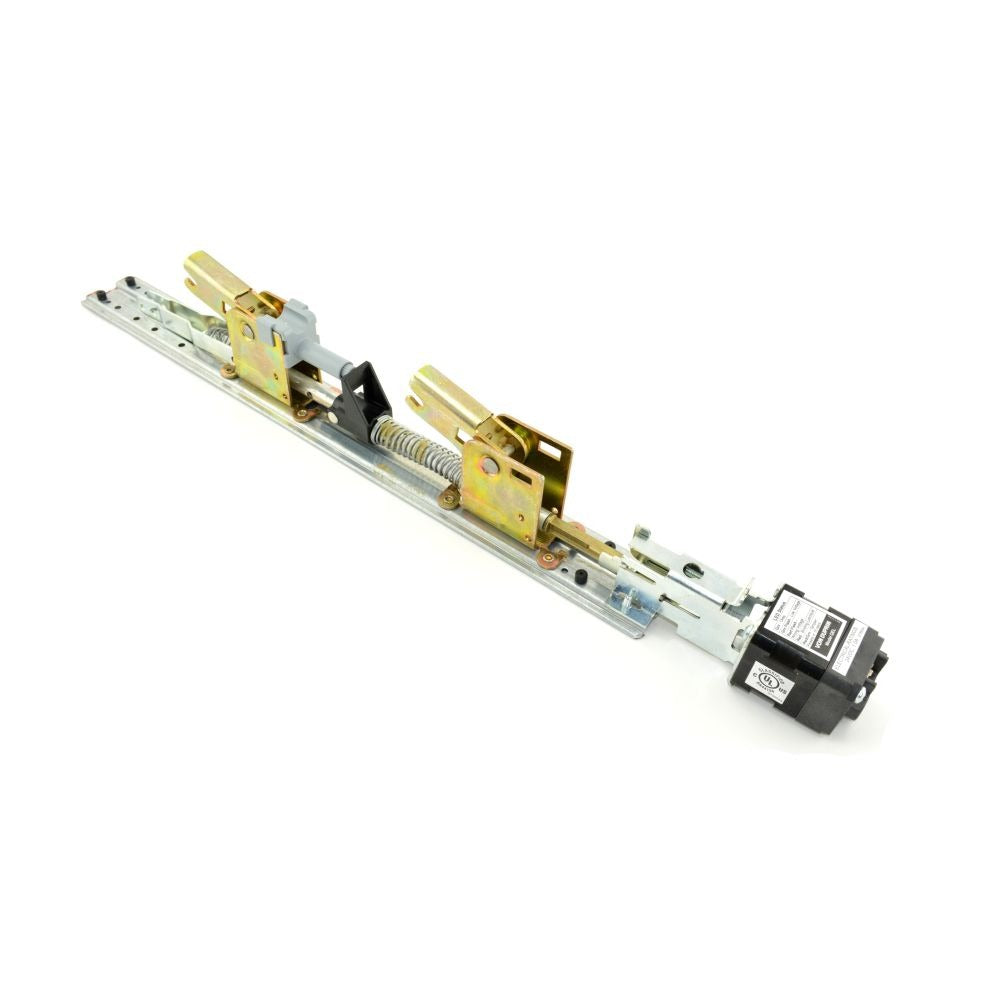

Von Duprin 95800300 Electric Latch Retraction Kit 3 Foot

Product Description

The VON DUPRIN 95800300 is a quiet electric latch retraction retrofit kit designed for 3-foot exit device applications. It allows existing panic hardware to be converted to electric latch retraction operation, enabling remote or access-control-triggered door release without replacing the entire exit device. The kit is engineered for low-noise operation, making it well-suited for hospitals, schools, offices, and other occupied spaces where audible latch noise is a concern. Weighing 3.2 pounds and measuring 23.8 inches in length, the assembly is compact enough for standard exit device rail housings. Licensed locksmiths, security integrators, and commercial door hardware technicians are the primary installers.

This retrofit kit is designed for use with VON DUPRIN 33, 35, 98, and 99 series exit devices on 3-foot door applications. It is typically deployed in commercial and institutional buildings requiring electronic access control integration at egress points. The electric latch retraction function allows the latch to be held retracted by a low-voltage signal from an access control panel, electric strike system, or fire alarm interface, enabling free egress while maintaining controlled entry.

Key Features

• Quiet electric latch retraction mechanism reduces operational noise in occupied spaces
• Retrofit design converts existing panic hardware to electric latch retraction without full device replacement
• Compatible with VON DUPRIN 33, 35, 98, and 99 series exit devices in 3-foot configurations
• Compact form factor at 23.8 inches length fits within standard exit device rail housings
• Sold as a single kit unit for straightforward ordering and installation planning

Compatibility

Designed for use with VON DUPRIN 33, 35, 98, and 99 series exit devices configured for 3-foot door applications.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with electric hardware and access control wiring. Disconnect all power to the access control system and any connected fire alarm interfaces before beginning the retrofit. Follow local building codes and NFPA 101 Life Safety Code requirements for egress hardware in the applicable occupancy type. Do not modify the exit device rail or latch mechanism beyond the scope of the retrofit kit instructions.
