Product Description

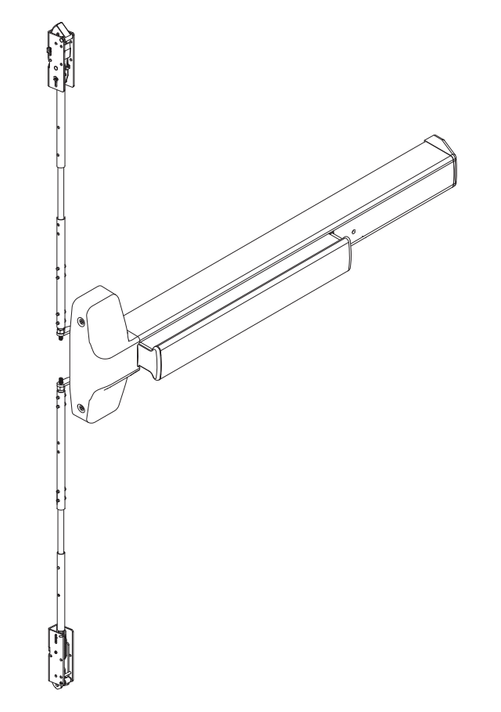

The Von Duprin 7847EO-626-36 is a Grade 1 exit device designed for wood doors. This device is ideal for exit-only applications and features a wide stile pushpad for easy access. It includes hex key dogging and comes in a satin chrome finish. The device is non-handed and is UL listed for panic exit hardware, meeting ANSI/BHMA A156.3 2014 standards.
- Suitable for both single and double wood doors.
- Equipped with a deadlocking latch bolt that features a five eighths inch throw.
- Includes a screw pack for easy installation on doors that are one and three fourths inches (4mm) or two and a quarter inches (57mm) thick.
Product Highlights

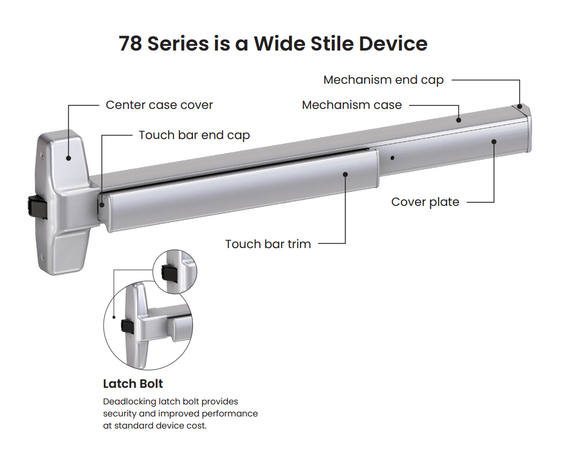

This exit device is built with durability and safety in mind. It features adjustable vertical rods and a convenient scalp plate for easy rod access.
Product Information
Standard Information
-
Device Function: Exit Only
-
Device Length: 3 feet - Designed for door sizes ranging from two feet six inches to three feet (762mm to 914mm)

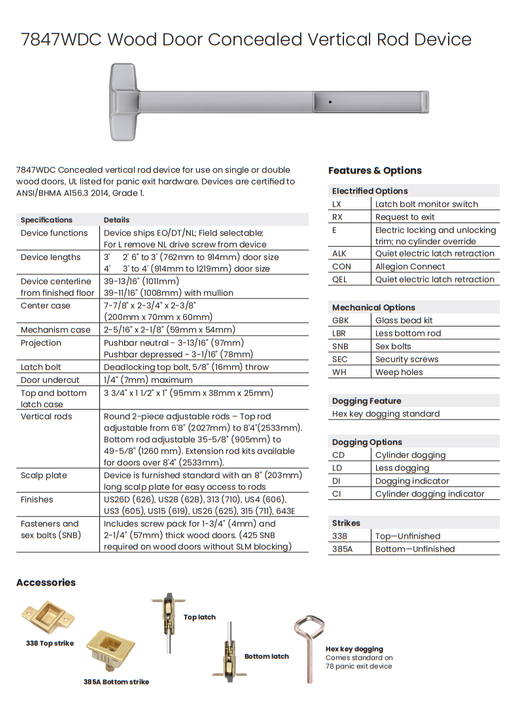

Technical Specifications
-
Centerline from Finished Floor: thirty-nine and thirteen sixteenths inches (1011mm)
-
Center Case Dimensions: seven and seven eighths inches x two and three quarter inches x two and three eighths inches (200mm x 70mm x 60mm)
-
Mechanism Case Dimensions: two and five sixteenths inches x two and one eighth inches (59mm x 54mm)
-
Projection: Pushbar neutral - three and thirteen sixteenths inches (97mm)
-
Latch Bolt: Deadlocking, five eighths inch (15.875mm) throw
-
Vertical Rods: Round two-piece adjustable rods
-
Scalp Plate: Eight inches long (203mm)
-
Finishes Available: US26D (626), US28 (628), 313 (710), US4 (606), US3 (605), US15 (619), US26 (625), 315 (711), 643E
