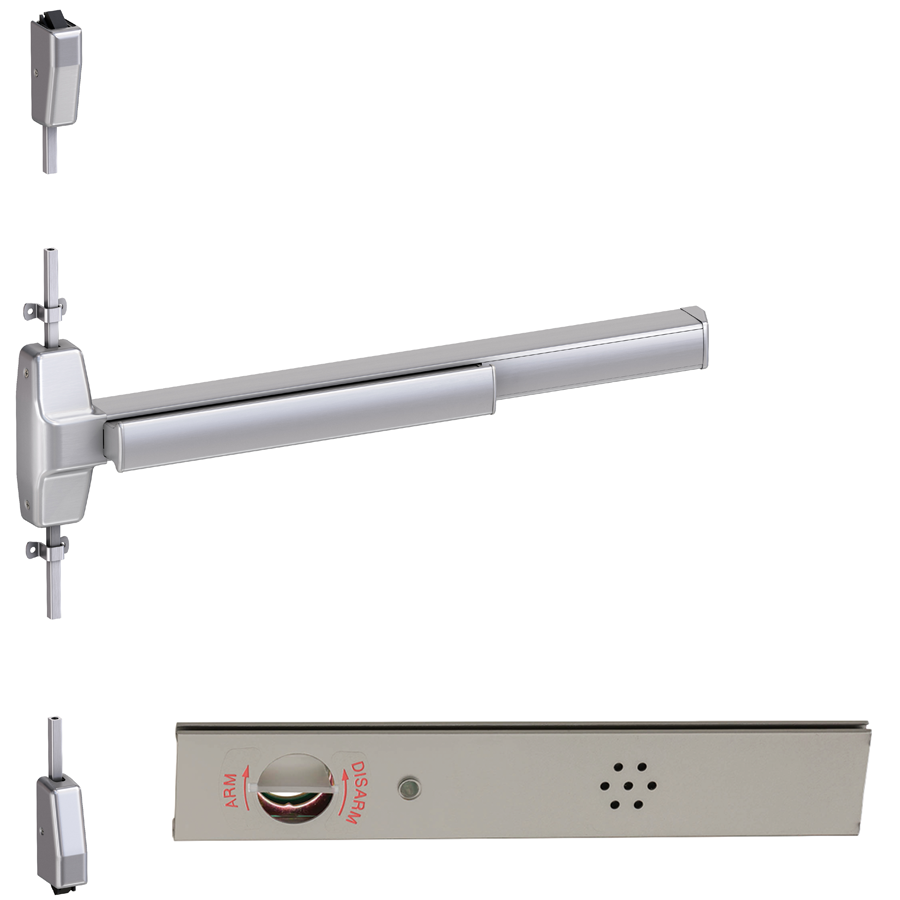

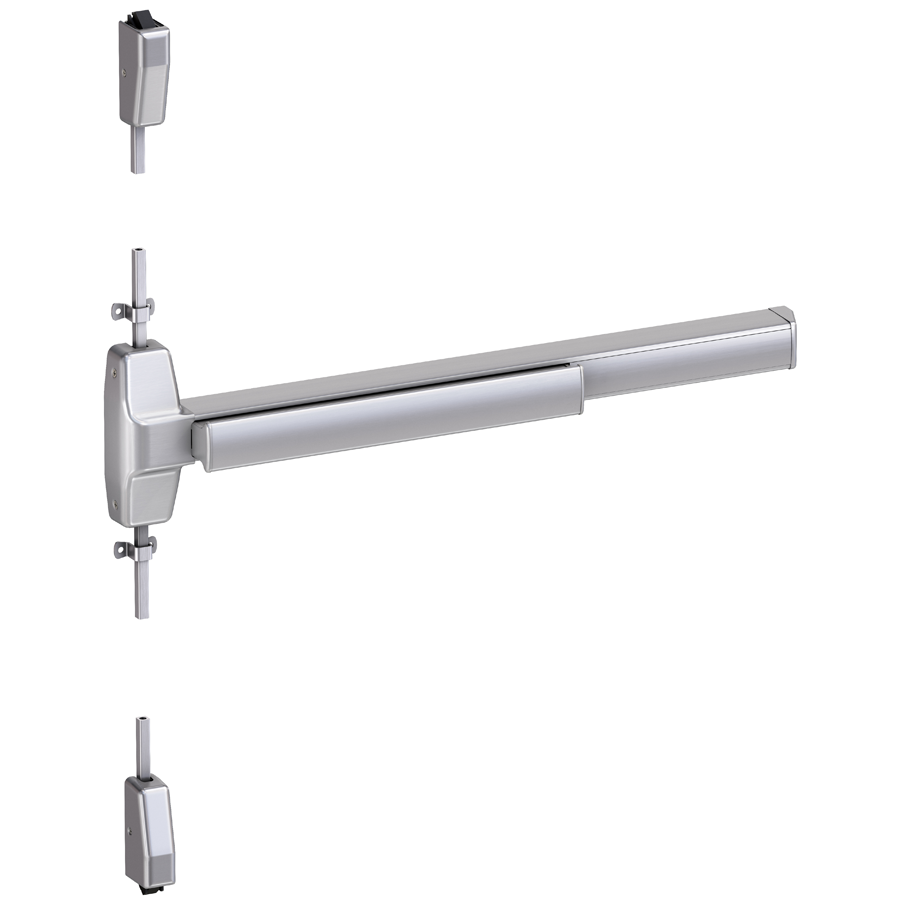

VON DUPRIN 7827EO-F-626-48 78 Series Fire-Rated SVR Exit Device No Dogging 48 inch x 84 inch

Product Description

The VON DUPRIN 7827EO-F-626-48 is a key fire-rated exit device suitable for high-traffic environments. This exit device features a surface vertical rod design with no dogging, intended for doors measuring forty-eight inches by eighty-four inches. It meets ANSI/BHMA Grade 1 standards, ensuring reliability for industrial, office, and retail applications.

• ANSI/BHMA Grade 1 certified for heavy-duty use
• Compatible with a range of lever designs and finishes
• Field sizeable for single and double door applications

Product Highlights

Engineered for safety and durability, this exit device provides ease of use in emergency situations.

Product Information

Standard Information

• Series: 78 Series
• Grade: Grade 1

Technical Specifications

• Product Group: Exit Devices and Trim
• Product Subgroup: Vertical Rod Exit Devices
• Latch Throw: 3/4 inch
• Device Centerline from Finished Floor: 39-13/16 inches
• Door Thickness Range: 1-3/4 inches
• Product Size: 48 inches
• Fire Rating: Yes
• Product Projection: 3-13/16 inches
• Product Style: Push Pads
