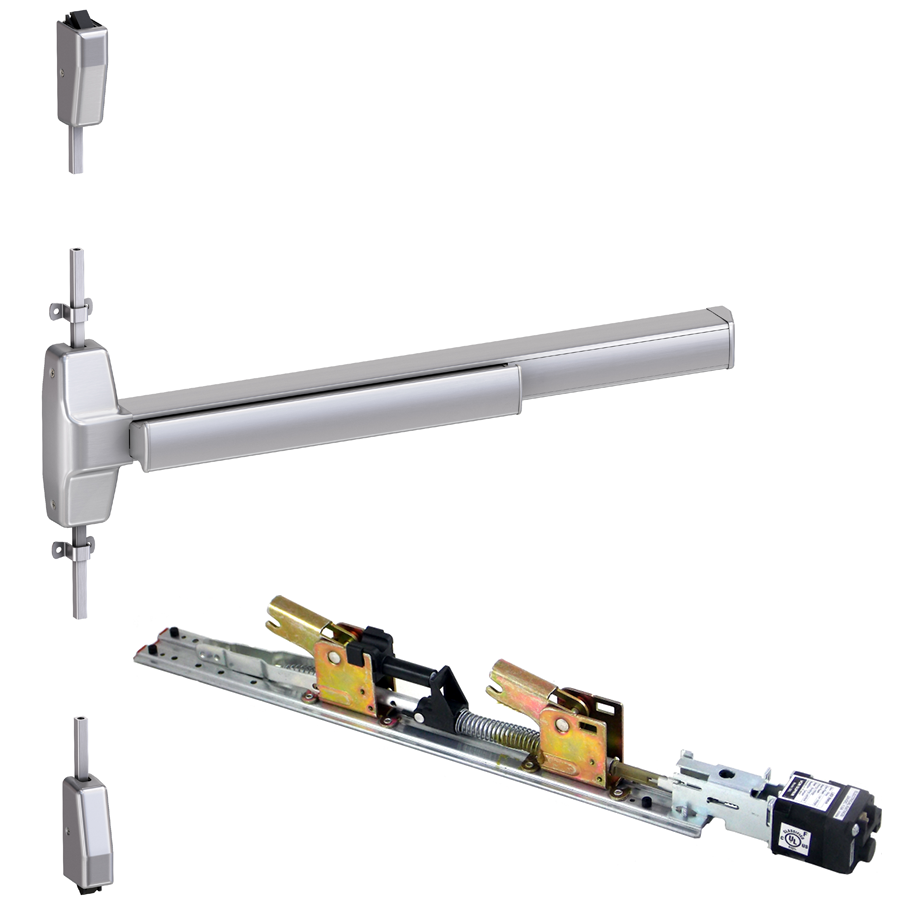

VON DUPRIN 7827EO-F-626-36 78 Series Fire-Rated SVR Exit Device 36

Product Description

The VON DUPRIN 7827EO-F-626-36 is a 78 Series Fire-Rated SVR Exit Device. This exit device is suitable for various environments such as warehouses, industrial sites, offices, multifamily units, retail outlets, and commercial buildings. It accommodates both single and double doors and is available in lengths of three feet and four feet. The device can also be adjusted in the field to fit specific needs.

• ANSI/BHMA Grade 1 certified.
• Multiple options for device types, lever designs, and finishes available.
• Suitable for heavy-duty applications.

Product Highlights

The VON DUPRIN 7827EO-F-626-36 combines durability with safety, featuring a fire rating for added protection.

Product Information

Standard Information

• Series: 78 Series
• Grade: Grade 1

Technical Specifications

• Product Subgroup: Exit Devices - Vertical Rod
• Subcategory: Surface Vertical Rod Exit Devices
• Latch Throw: 3/4 inches
• Product Type: Exit Devices - Surface Vertical Rod
• Commercial/Residential: Commercial
• Device Centerline from Finished Floor: 39-13/16 inches
• Stile Type: Narrow Stile
• Wood Door Compatible: No
• Product Model: 7827F
• Door Thickness Range: 1-3/4 inches
• Product Size: 36 inches
• Dogging Configuration: Hex Key Dogging
• Fire Rating: Yes
• Product Projection: 3-13/16 inches
• Door Strike: Top: 299; Bottom: 304L
• Product Style: Push Pads
• Product Category: Exit Devices and Trim
