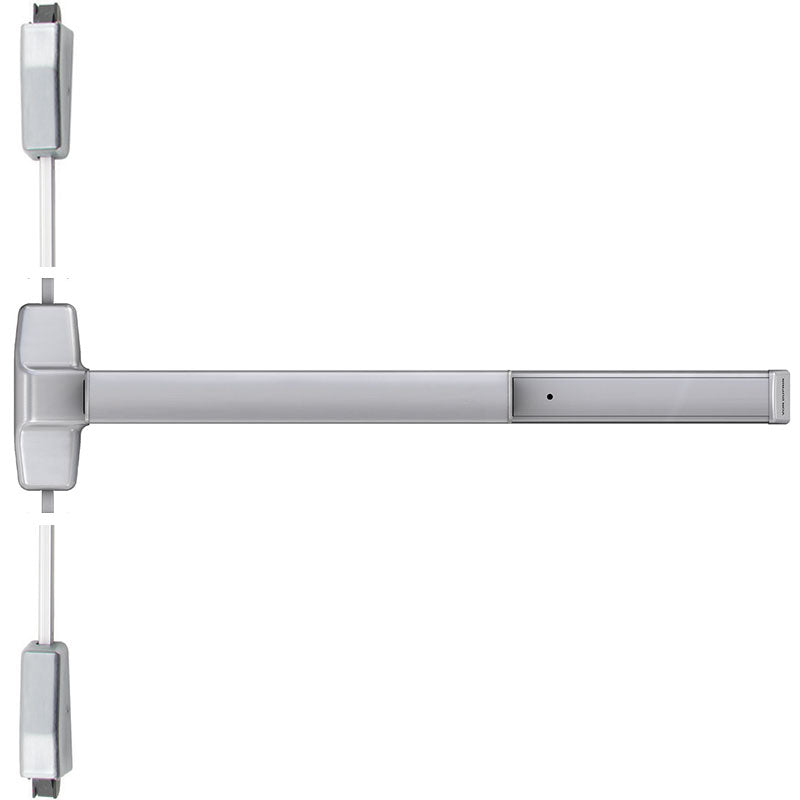

Von Duprin 7827EO-626-36 7827EO Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, Panic Device, 84 Door Height, Exit Only, Less Trim

Product Description

The Von Duprin 7827EO-626-36 is a Grade 1 surface vertical rod exit bar. It features a wide stile pushpad and a panic device. This exit bar is suitable for both single and double doors. It is UL listed for panic exit hardware and meets ANSI/BHMA A156.3 2014, Grade 1 standards. The exit bar accommodates doors up to seven feet tall and covers stock hollow metal doors with 86 or 161 cutouts. Hex key dogging is included.

• Grade 1 Surface Vertical Rod Exit Bar
• Wide Stile Pushpad
• Panic Device

Product Highlights

Product Information

Standard Information

• Brand: Von Duprin
• Usage: Heavy Duty

Technical Specifications

• Finish Options: Duranodic Dark Bronze, Aged Bronze, Bright Brass, Satin Brass, Satin Bronze, Satin Nickel, Flat Black, Bright Chrome, Satin Chrome, Anodized Aluminum, Satin Stainless Steel
• Device Type: Surface Rod Device
• ANSI/BHMA Standard: ANSI/BHMA A156.3 2014, Grade 1 Certified
• Fire Rating: Non-Fire-Rated
• Door Compatibility: Doors up to 7 feet, 1-3/4 inches thick
• Dogging Feature: Half turn hex dogging standard
• Warranty: 3 Year Warranty
• Made in: USA, Meets Buy American Act
