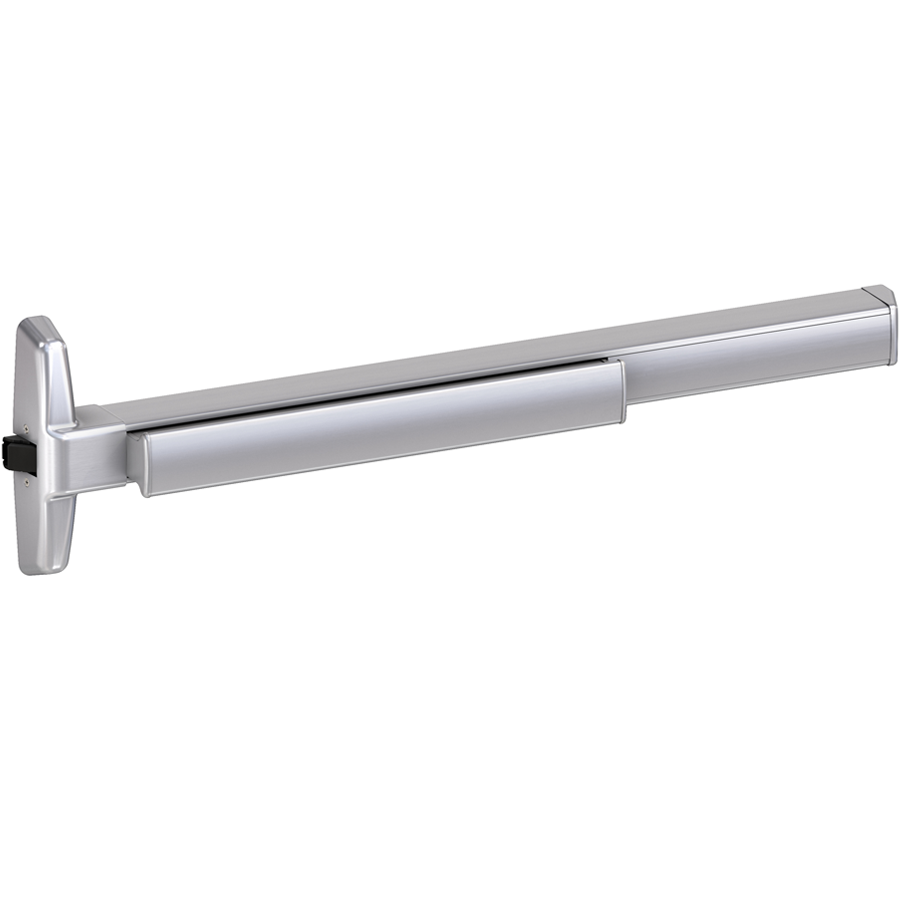

VON DUPRIN 75EO-F-626-36 75 Series Fire-Rated Rim Exit Device No Dogging 36inch

Product Description

The VON DUPRIN 75EO-F-626-36 is a fire-rated rim exit device designed for safety in emergency situations. This exit device does not have dogging or trim, ensuring a straightforward and reliable operation. It meets ANSI/BHMA A156.3 2014, grade 1 standards and is UL listed for use in fire exit applications. The device is suitable for doors sized three feet wide and features a deadlocking latch bolt with a five-eighths inch throw.

• Fire-rated rim exit device
• No dogging for ease of use
• Designed for three-foot door openings

Product Highlights

This device provides reliable security and quick access in emergencies, making it essential for buildings that require compliant exit solutions.

Product Information

Standard Information

• Manufacturer: Von Duprin
• Fire Rated: Yes

Technical Specifications

• Device Width: 36 inches
• Door Thickness: 1-3/4 inches
• Fire Rating: 180 min
• Handing: Field reversible
• Finish Code: 622, 626, 630
• Latch Bolt: Deadlocking, 5/8 inch throw
• Device Lengths: 2 feet 6 inches to 3 feet
• Projection: Pushbar neutral - 3-13/16 inches
