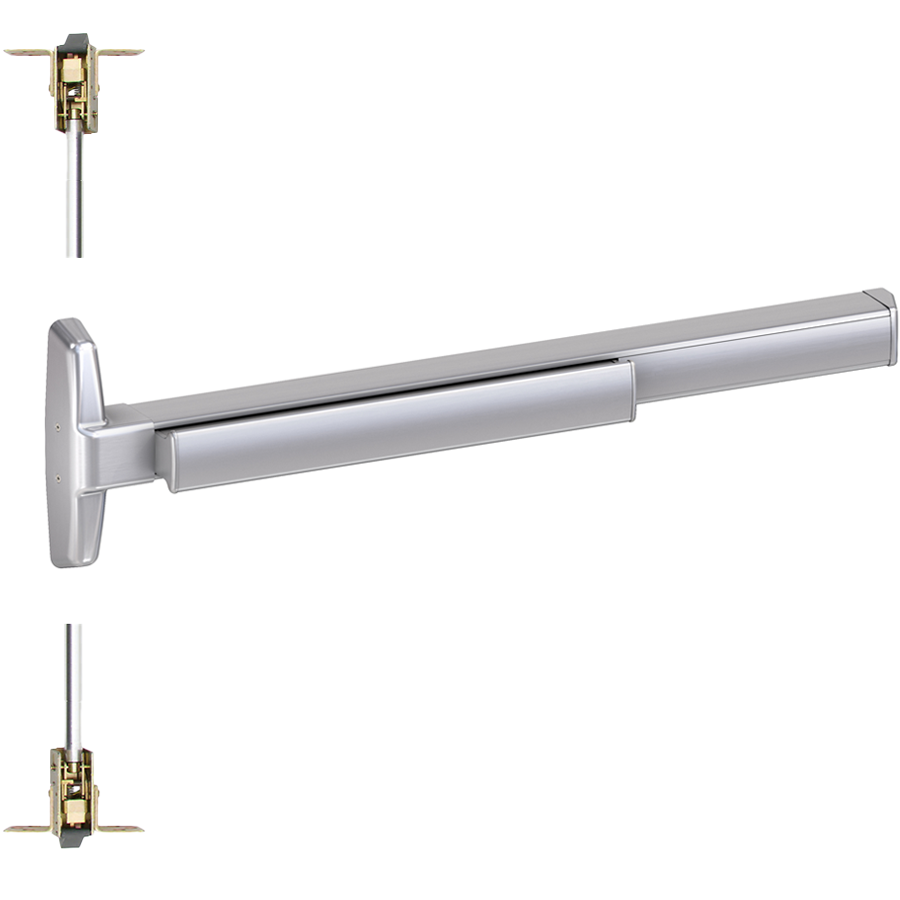

VON DUPRIN 7547EO-F-626-36 Fire-Rated CVR Exit Device 36inch x 84inch

Product Description

The VON DUPRIN 7547EO-F-626-36 is a 75 Series fire-rated CVR exit device. This product meets ANSI/BHMA A156.3 2014, grade 1 standards and is UL listed for safety. It is suitable for aluminum door frames and designed for doors with a width of thirty-six inches and a thickness of one and three-quarters inches.

• Fire-rated for safety
• Concealed vertical rod design
• No dogging feature for ease of use

Product Highlights

This exit device is ideal for high-traffic areas where fire safety is critical, providing reliable exit functionality without visible hardware.

Product Information

Standard Information

• Manufacturer: Von Duprin
• Door Frame Type: Aluminum Frame

Technical Specifications

• Device Width: 36 inches
• Door Thickness: 1-3/4 inches
• Fire Rating: 180 min
• Function: Exit only
• Grade: Grade 1
• Handing: Field reversible
• Series: 75
• Latch Bolt: Deadlocking, 5/8 inches throw
