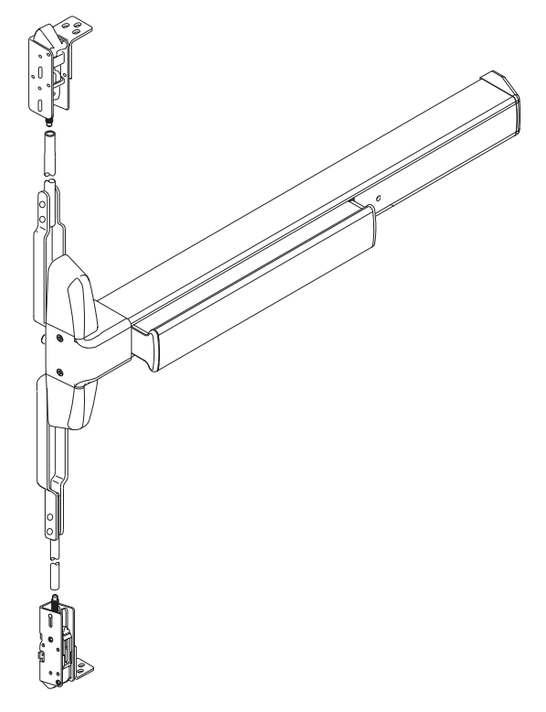

Von Duprin 7547EO-626-36 7547EO 36 inch Concealed Vertical Rod Exit Device

Product Description

The Von Duprin 7547EO-626-36 is a grade 1 concealed vertical rod exit device designed for safety and security. This unit accommodates single or double metal doors, featuring a narrow stile pushpad and a length of thirty-six inches. It is UL listed, ensuring its compliance with safety standards for panic exit hardware and certified to ANSI/BHMA A156.3 2014, Grade 1.

• Grade 1 exit device with concealed vertical rod.

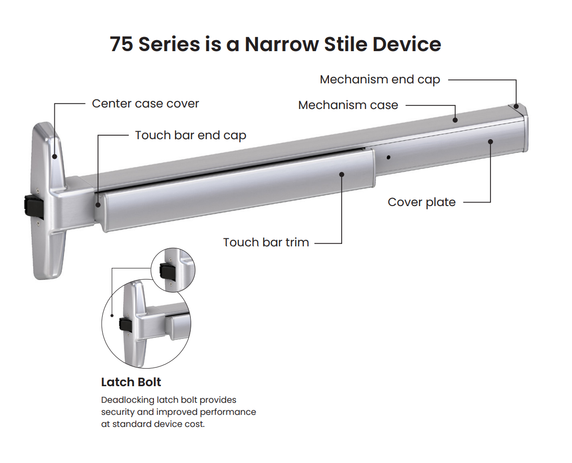

• Narrow stile pushpad and thirty-six inch device.
• UL listed for panic exit hardware.

Product Highlights

Product Information

Standard Information

• Device Function: EO - Exit Only
• Device Length: 3 feet - Suitable for door sizes from 2 feet 6 inches to 3 feet

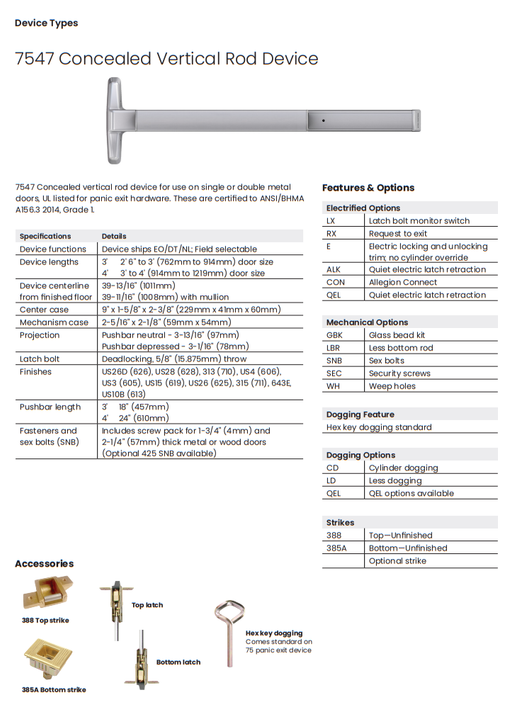

Technical Specifications

• Device Centerline from Finished Floor: 39-13/16 inches with mullion at 39-11/16 inches
• Center Case Dimensions: 9 inches x 1-5/8 inches x 2-3/8 inches
• Mechanism Case Dimensions: 2-5/16 inches x 2-1/8 inches
• Projection: Pushbar neutral at 3-13/16 inches, depressed at 3-1/16 inches
• Latch Bolt: Deadlocking, 5/8 inch throw
• Available Finishes: US26D, US28, 313, US4, US3, US15, US26, 315, 643E
• Pushbar Length: 36 inches
• Fasteners Included: Screw pack suitable for 1-3/4 inch and 2-1/4 inch thick metal or wood doors
