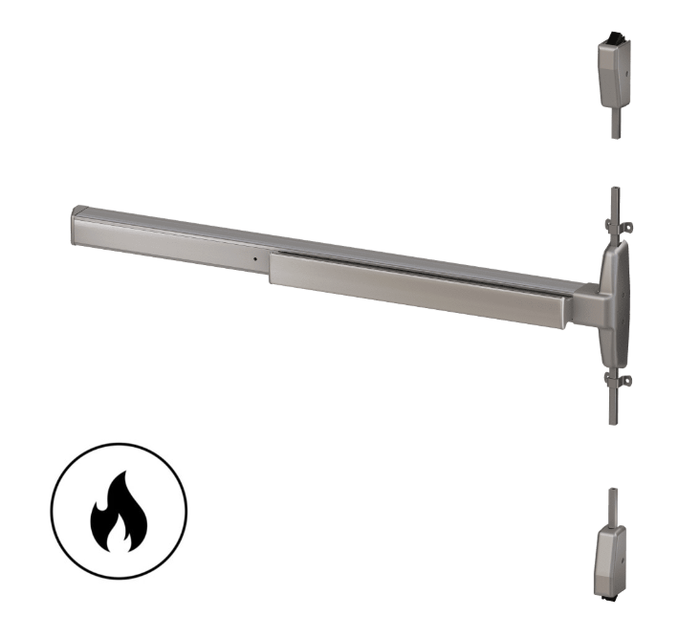

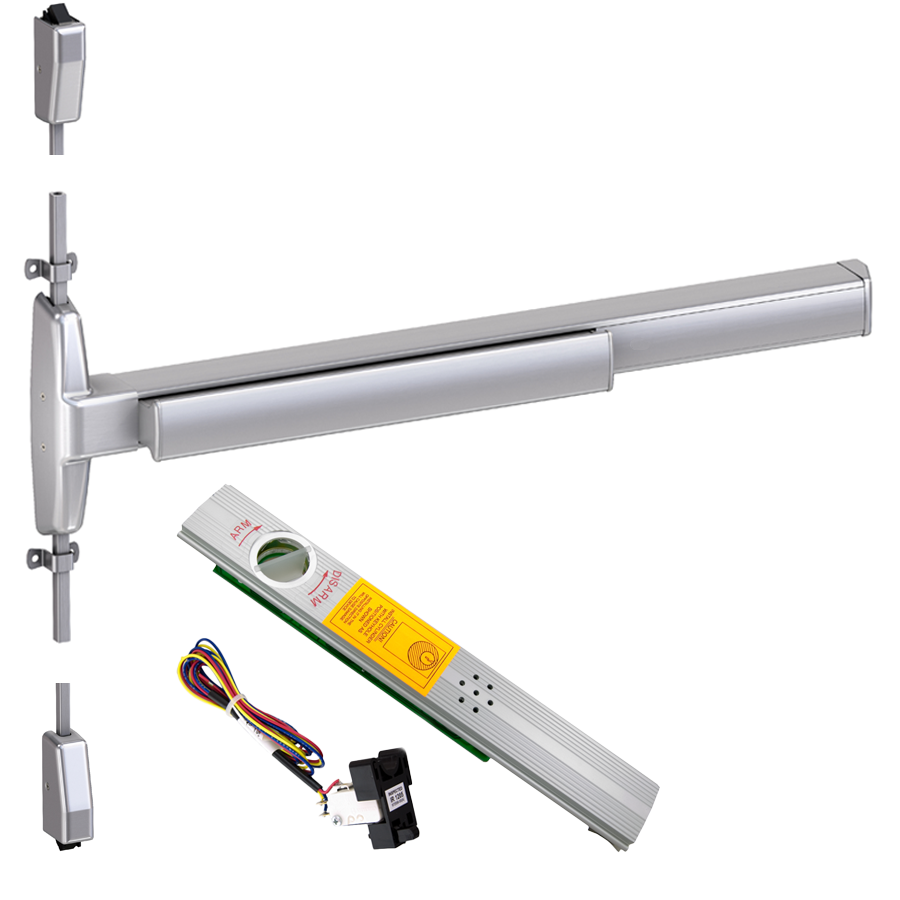

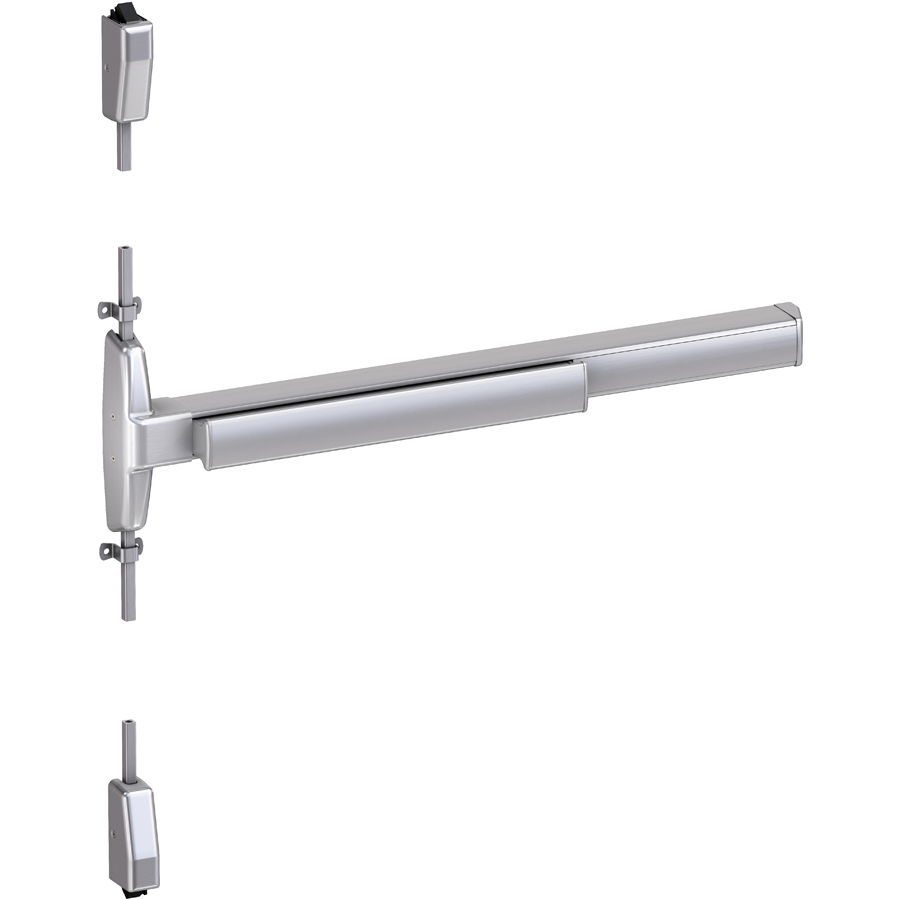

VON DUPRIN 7527EO-F-626-48 75 Series Fire Rated SVR Exit Device 48inch x 84inch

Product Description

The VON DUPRIN 7527EO-F-626-48 is part of the 75 Series Fire Rated SVR (Surface Vertical Rod) Exit Device line. This device is designed for various applications including warehouses, offices, and commercial spaces. It meets ANSI/BHMA Grade 1 standards and is UL listed, ensuring compliance with fire safety regulations.

• ANSI/BHMA Grade 1 certified
• Fire rated for safety
• Available in lengths of three and four feet

Product Highlights

The exit device offers reliable performance and is suitable for both panic and exit alarm functionalities.

Product Information

Standard Information

• Manufacturer: Von Duprin
• Fire Rating: 180 minutes

Technical Specifications

• Device Width: 48 inches
• Door Thickness: 1-3/4 inches
• Grade: Grade 1
• Function: Exit Only
• Handing: Field Reversible
• Latch Throw: 3/4 inches
• Strike Type: Fire Rated Rim Strike
• Product Size: 48 inches
