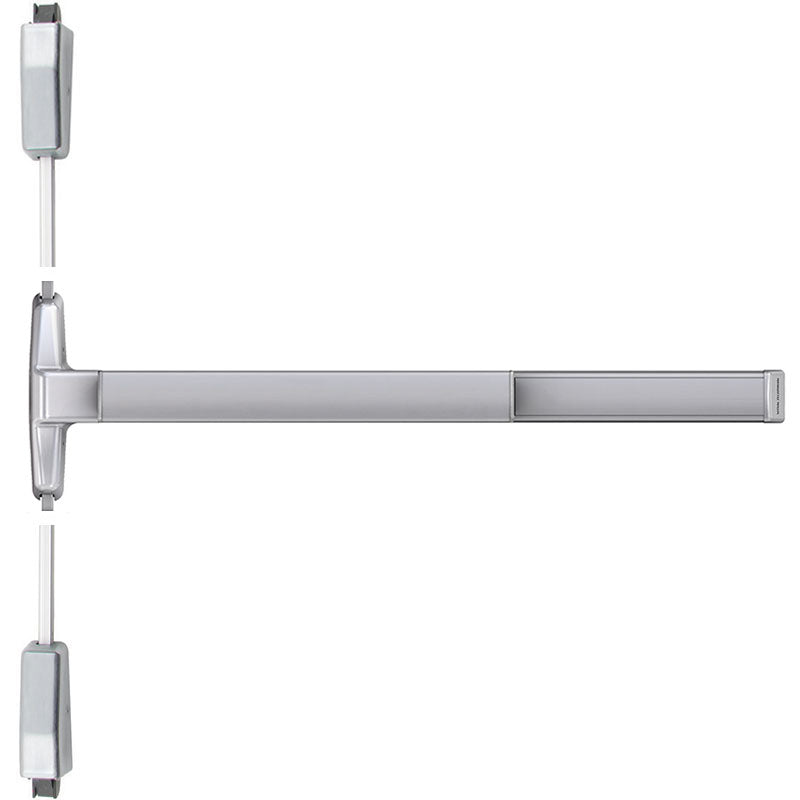

VON DUPRIN 7527EO-F-626-36 Fire-Rated Narrow Stile Surface Vertical Rod Exit Device

Product Description

The Von Duprin 7527EO-F-626-36 is a Grade 1 surface vertical rod exit device designed for use in fire-rated applications. This device features a narrow stile pushpad and is intended for exit-only situations. It is suitable for doors with a height of up to eighty-four inches, making it ideal for warehouse, industrial, office, and commercial environments.

• Grade 1 certified to ANSI/BHMA A156.3 2014
• UL listed for fire door use for up to three hours
• Field reversible handing allows for easy installation

Product Highlights

This exit device provides reliable operation in a variety of settings, ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: Von Duprin
• Device Type: Surface Rod Device

Technical Specifications

• Finishes: Duranodic Dark Bronze, Aged Bronze, Bright Brass, Satin Brass, Satin Bronze, Satin Nickel, Flat Black, Bright Chrome, Satin Chrome, Anodized Aluminum
• ANSI/BHMA Standard: Grade 1 Certified
• Usage: Heavy Duty
• Fire Rating: UL/cUL Listed for fire doors up to three hours
• Vertical Rods: Accommodates doors up to seven feet
• Hand: Field Reversible
• Latchbolt: Deadlocking anti-friction top and bottom bolt, five eighths inch throw
• Strikes: 299F Top Strike, 304L Bottom Strike
• Stile Type: Narrow
• Center Case: Nine inches x one and five eighths inches x two and three eighths inches
• Projections: Neutral pushbar three and thirteen sixteenths inches, depressed pushbar three and one sixteenth inches
• Fasteners: Includes screws for metal and wood doors
• Door Applications: One and three fourths inch thick doors
• Warranty: Three Year
• Buy American Act Compliance: Made in USA
