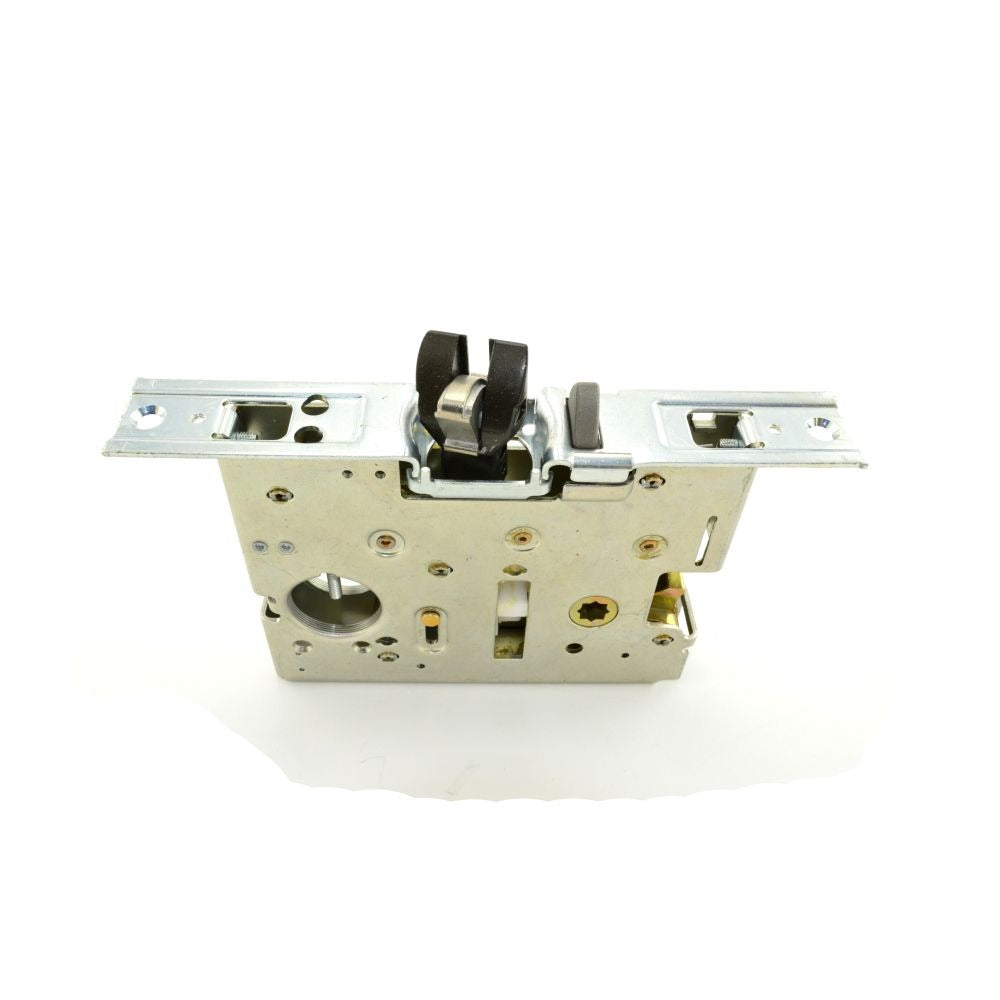

Von Duprin 750032D Standard Mortise Lock Body 630

Product Description

The VON DUPRIN 750032D is a standard mortise lock body finished in 630 satin stainless steel, designed for use in commercial door hardware applications. Mortise lock bodies are installed inside a precisely routed pocket within the door edge, providing a clean, flush-mounted locking mechanism suited for high-traffic and code-compliant openings. Measuring 9.4 inches in length, 4.9 inches in width, and 2.9 inches in height, the 750032D offers a robust form factor for demanding door prep work. Licensed locksmiths, door hardware installers, and commercial contractors are the typical trades that specify and install this component.

This mortise lock body is suited for commercial and institutional settings such as office buildings, schools, hospitals, and government facilities where durable, code-compliant door hardware is required. It is sold individually and is intended as a component within a complete mortise lockset assembly. The 630 satin stainless steel finish provides corrosion resistance for environments that require both durability and a clean aesthetic.

Key Features

• 630 satin stainless steel finish for corrosion resistance in commercial environments
• Standard mortise lock body profile for compatibility with common mortise door preps
• Compact form factor at 9.4 x 4.9 x 2.9 inches for precise door pocket installation
• Sold individually as a unit (EA) for targeted replacement or new installation
• Designed for high-traffic commercial and institutional door openings

Compatibility

Designed as an OEM-style replacement or new-install mortise lock body for standard commercial mortise door preparations. Specific compatible trim, cylinders, and exit device pairings should be confirmed against the door prep and hardware specification prior to ordering.

Installation Notes

Mortise lock bodies are installed by licensed locksmiths or qualified commercial door hardware technicians. The door must be mortised to the exact dimensions required by the lock body prior to installation. Ensure the door and frame are properly aligned and that all fasteners are secured before returning the door to service. Consult applicable building codes and the authority having jurisdiction for hardware requirements on rated or access-controlled openings.
