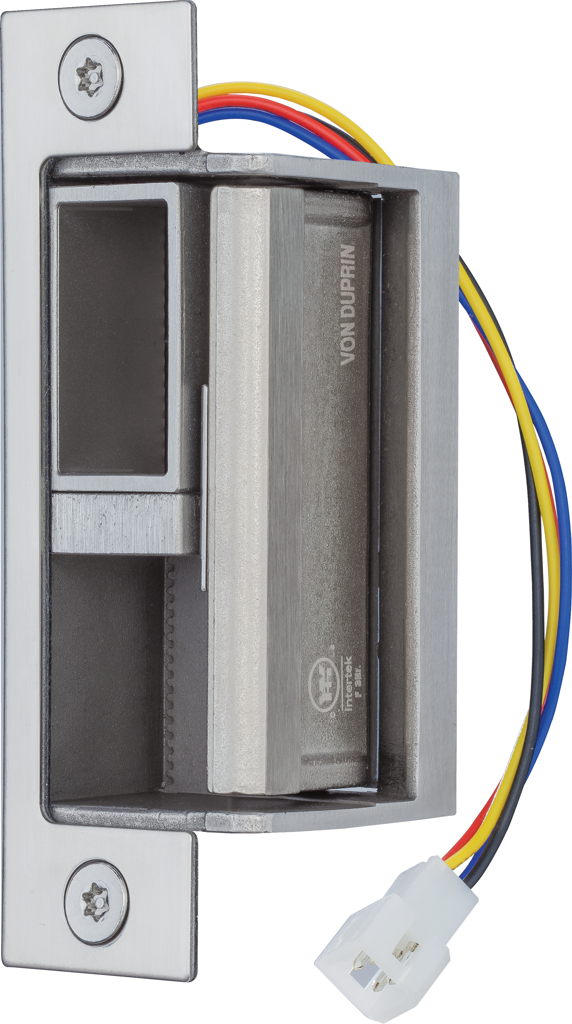

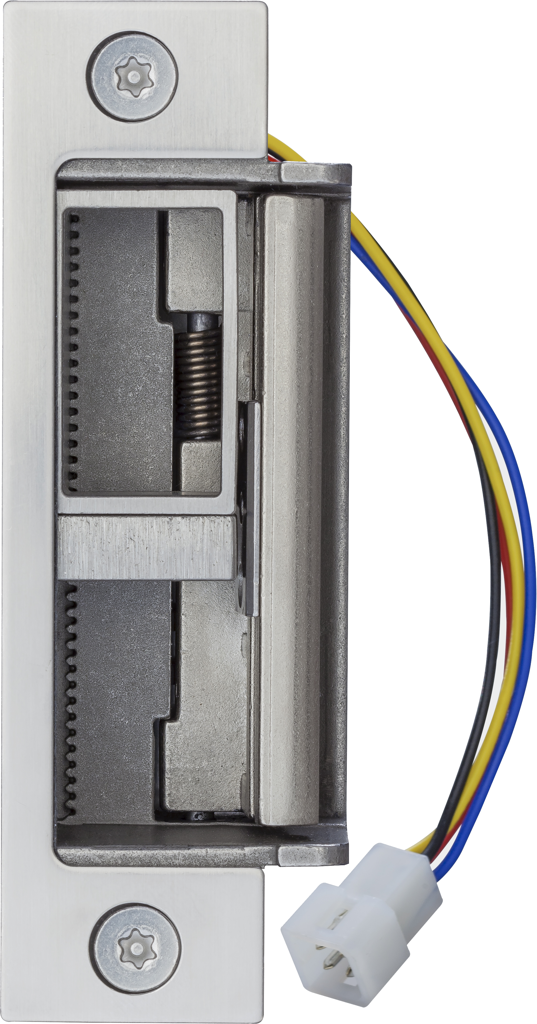

Von Duprin 6400-630-12/24VDC-FSE Fire Rated Modular Electric Strike 12/24VDC

Product Description

The Von Duprin 6400-630-12/24VDC-FSE electric strike offers a modular design suitable for various installations. This electric door strike is highly configurable, making it compatible with many mortise or cylindrical locks. It allows for vertical adjustments and includes prewired connectors for both twelve and twenty-four VDC voltage.

• Modular design accommodates cylindrical and mortise locks
• Stainless steel construction with a satin finish
• Vertical adjustments for versatile alignment with various locks

Product Highlights

Reliable access control solution for security needs.

Product Information

Standard Information

• Brand: Von Duprin
• MPN: 6400-630-12/24VDC-FSE

Technical Specifications

• Latchbolt Throw: three-fourths inches
• Face Plate Length: four and seven-eighths inches
• Backbox Depth: one and three-fourths inches

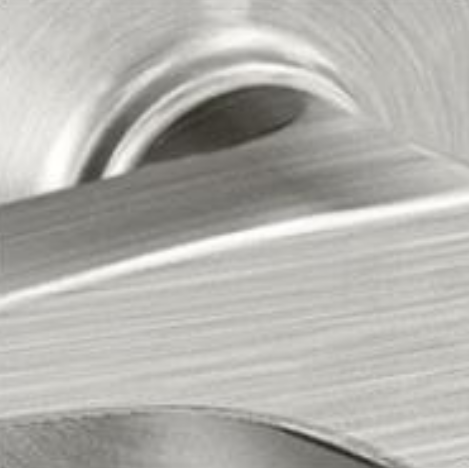

• Finish: Stainless steel, satin (BHMA 630/US 32D)
• Lockset: Cylindrical, mortise, mortise exit
• Number of Doors: Single
• Door/Frame Type: Hollow metal, aluminum, wood
• Voltage: twelve to twenty-four
• Current Draw: 0.19A at 24VDC, 0.375A at 12VDC
• Electrical Specifications: Fail-secure only, ideal for fire-rated openings
• Product Category: Access Control, Electric Strikes
• Compatible Lockset Types: Cylindrical, mortise
• Size of Electric Strike Faceplate: four and seven-eighths inches by one and one-fourth inches
• Grade: Grade 1
• Height: two and three-eighths inches
• Length: nine and eighty-eight hundredths inches
• Width: one and seventy-five hundredths inches
