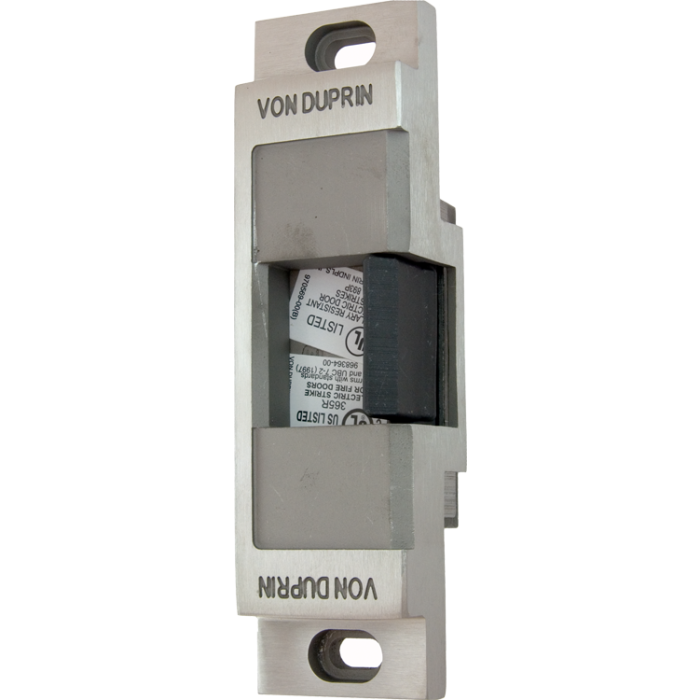

VON DUPRIN 6111-630-12VDC-FSE Electric Strike 12VDC

Product Description

The VON DUPRIN 6111-630-12VDC-FSE electric strike is designed for durability and reliability. This electric strike operates at a voltage of twelve volts direct current in fail-secure mode. It allows for remote door release through a movable keeper and is compatible with rim exit devices.

• Heavy-duty stainless steel construction
• UL 1034 listed for burglary resistance
• Meets ANSI/BHMA A156.31, Grade 1 for endurance and strength

Product Highlights

This electric strike is built to withstand demanding conditions and is suitable for use in security applications.

Product Information

Standard Information

• Category: Exit Device Parts, Panic Devices & Exit Alarms
• Voltage: 12VDC

Technical Specifications

• Fail Mode: Fail Secure (FSE)
• Finish: 630/US32D Satin Stainless Steel
• Fire Rated: Yes (UL 10C 3-hour fire-rated)
• Construction: Heavy-duty stainless steel
• Listing: UL 1034 listed for burglary resistance
• ANSI/BHMA: Meets ANSI/BHMA A156.31, Grade 1
• Static Strength: Meets ANSI/BHMA A156.31, Grade 1, 1500 lbs
• Dynamic Strength: 70 ft lbs
• Endurance: 1,000,000 cycles
• Grade: Grade 1
• Handing: Field Reversible
• Faceplate Size: 6 inches x 1-5/8 inches
• Throw: 3/4 inch
• Finish code: 630
• Lock Category: Rims
• Electric Strike Type: Electric Strike for Rim
