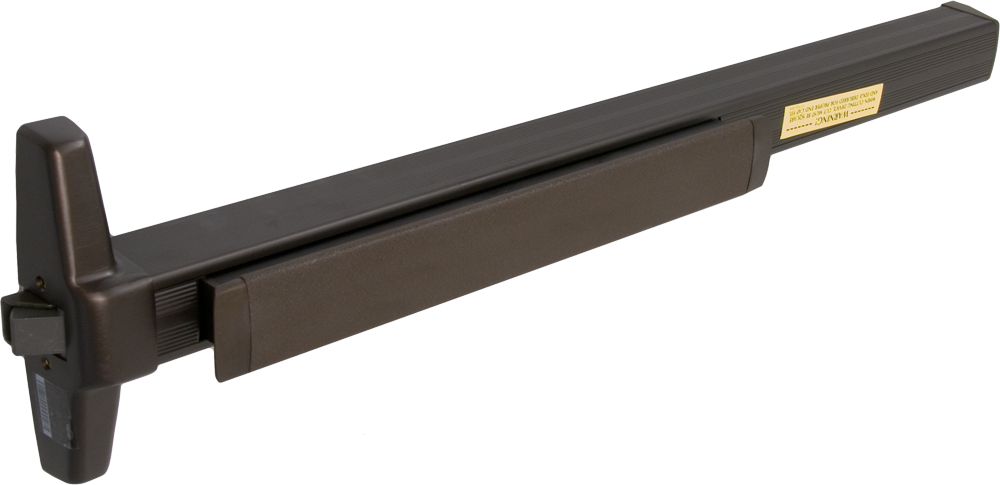

VON DUPRIN 35A-EO-710-36 Narrow Stile Rim Exit Device 36 inch

Product Description

The Von Duprin 35A-EO-710-36 is a rim exit device suitable for both single and double doors featuring a mullion. This device is UL listed for panic exit hardware and conforms to ANSI A156.3 Ð 2001 Grade 1 standards. It is specifically designed to accommodate door stiles that are as narrow as one and three-quarters inches (44 millimeters).

• Narrow stile rim exit device
• Designed for exit-only applications
• Equipped with hex dogging

Product Highlights

This exit device includes a smooth mechanism case and a one-piece center case cover. It is intended for usage in exit-only applications that do not require outside trim.

Product Information

Standard Information

• Handing: Field reversible
• Function: Exit only

Technical Specifications

• Door Width: 36 inches
• Door Type: Aluminum, hollow metal, wood
• Exit device type: Rim
• Dogging: Hex key
• Bar Style: Push bar
• Device Lengths: Three feet - two feet four inches to three feet (711mm to 914mm)
• Device Centerline From Finished Floor: 39-13/16 inches (1011mm)
• Center Case Dimensions: 8-3/16 inches x 1-9/16 inches x 2-13/32 inches (208mm x 40mm x 62mm)
• Mechanism Case Dimensions: 2-1/4 inches x 2-1/4 inches (57mm x 57mm)
• Projection: Push bar neutral Ð 3-13/16 inches (97mm)
• Latch Bolt: Deadlocking, 3/4 inch (19mm) throw
• Fasteners & Sex Bolts (SNB): Includes 1-3/4 inch (44mm) Ð 2-1/4 inch (57mm) for wood and metal doors
