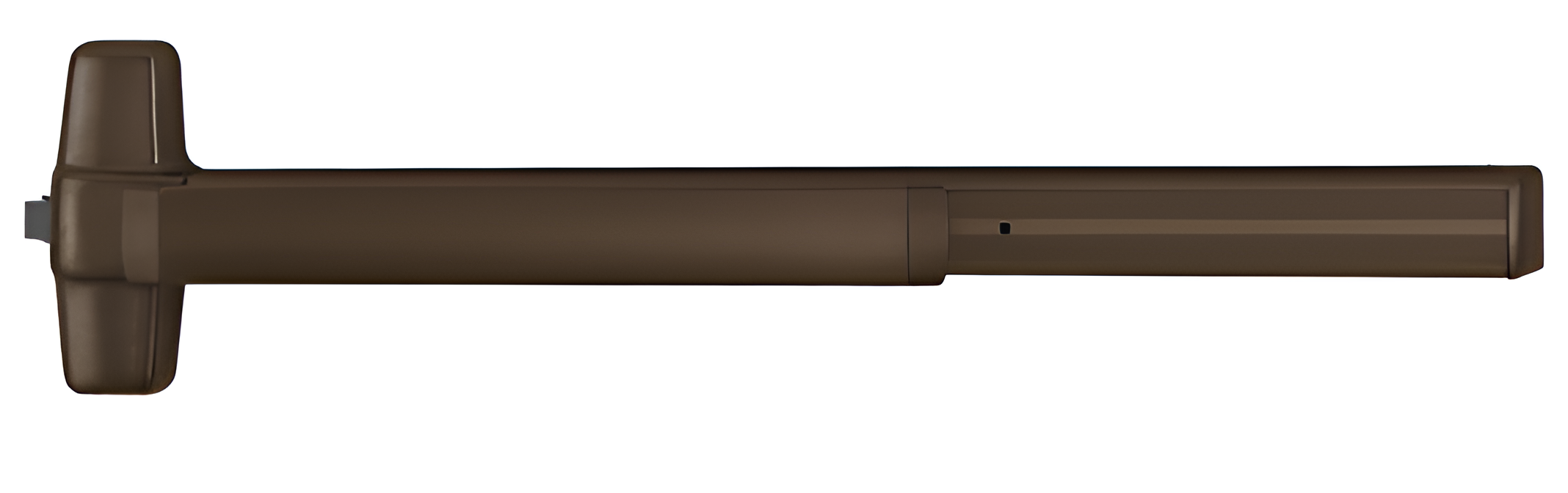

VON DUPRIN 3549A-EO-710-36 Narrow Stile CVC Concealed Vertical Cable Exit Device 36 x Adjustable up to 96

Product Description

The VON DUPRIN 3549A-EO-710-36 is a narrow stile CVC concealed vertical cable exit device. This exit-only device is designed to be adjustable from thirty six inches to ninety six inches. It features hex dogging and meets Grade 1 construction standards, making it suitable for use with hollow metal single and double doors. It is UL listed for panic exit hardware, ensuring reliability and safety.

• Adjustable from thirty six inches to ninety six inches
• Hex dogging feature for secure operation
• Suitable for doors with stiles as narrow as two inches

Product Highlights

This exit device is ideal for high-traffic areas, providing safe and compliant emergency exit solutions.

Product Information

Standard Information

• Brand: VON DUPRIN
• MPN: 3549A-EO-710-36

Technical Specifications

• Device Lengths: 2' to 2' (610 mm) for door size, 3' to 2'4' to 3' (660 mm to 914 mm) for door size, 4' to 2'8inch to 4' (813 mm to 1219 mm) for door size
• Device Centerline From Finished Floor: 39 13/16inch (1006 mm)
• Center Case Dimensions: 8 13/16inch x 2 13/32inch x 1 9/16inch (208 mm x 62 mm x 40 mm)
• Mechanism Case Dimensions: 2 1/4inch x 2 1/4inch (57 mm x 57 mm)
• Projection: Push bar neutral approximately 3 13/16inch (97 mm), depressed approximately 3 1/16inch (78 mm)
• Latch Bolt: Deadlocking anti-friction bolt with 1/2inch (13 mm) throw
• Door Undercut: 3/4inch (19 mm) maximum
• Vertical Cables: 7/32inch (6 mm) diameter stainless steel cables
