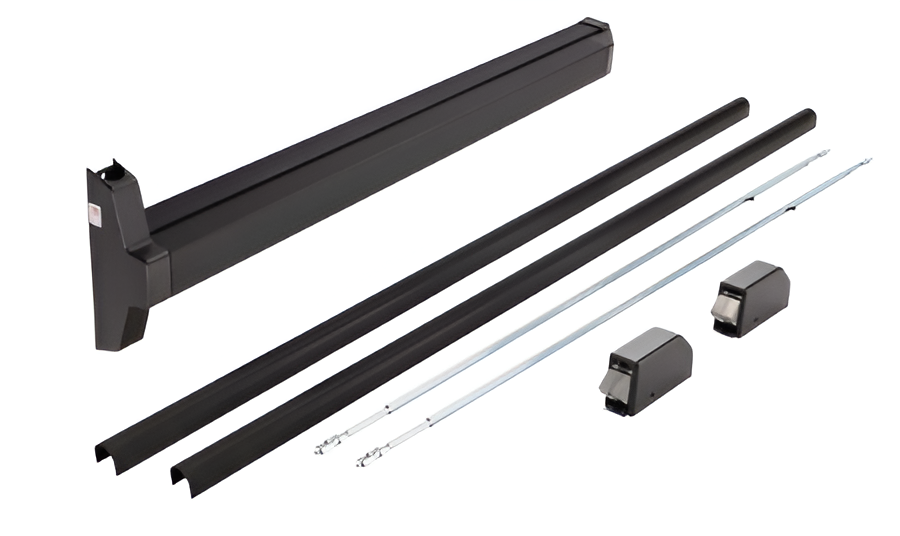

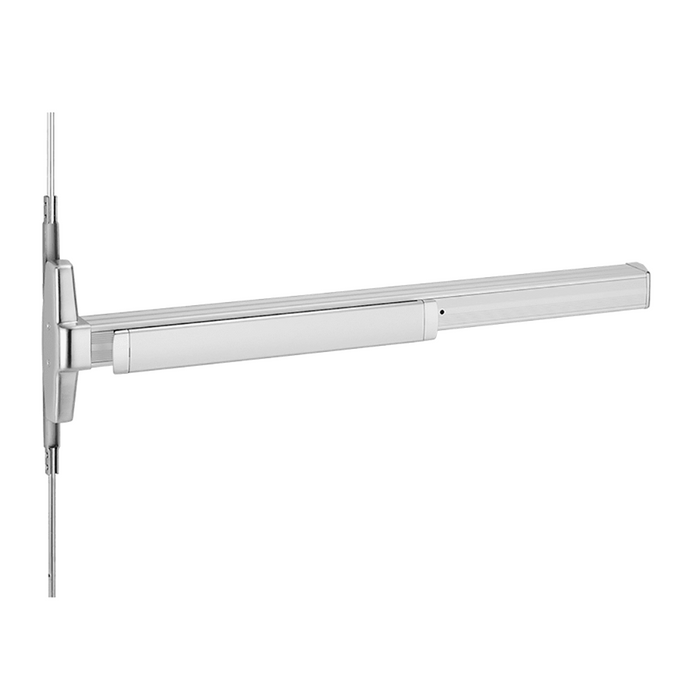

VON DUPRIN 3547A-EO-711-48 Concealed Vertical Rod Exit Device - Exit Only 48inch

Product Description

The VON DUPRIN 3547A-EO-711-48 is a concealed vertical rod exit device intended for exit-only applications on both single and double doors equipped with a mullion. This device is compatible with door stiles as narrow as one and three-quarters inches and wood door stiles as narrow as four inches. It features a one-piece center case cover and holds a UL listing for Panic Exit Hardware. The product complies with ANSI A156.3, 2001 Grade 1 certification.

• Designed for both single and double doors with a mullion.
• Features a smooth mechanism cover for reliability.
• Equipped with a deadlocking latchbolt to prevent forced retraction.

Product Highlights

Ideal for commercial settings, this exit device allows for secure and compliant access to emergency exits.

Product Information

Standard Information

• Device Type: Exit Only
• Door Width: 48 inches

Technical Specifications

• Strikes: Top 338 Unfinished, Bottom 385A Unfinished
• Dogging Feature: Hex key dogging standard
• Latch Bolt: Deadlocking with 5/8 inch throw
• Dimensions: Center case 8 3/16 x 2 13/32 x 1 9/16 inches
• Vertical Rods: Round two-piece adjustable rods
• Handing: Field reversible
• Function: Exit Only
• Fire Rating: No
• Product Category: Exit Devices and Trim
