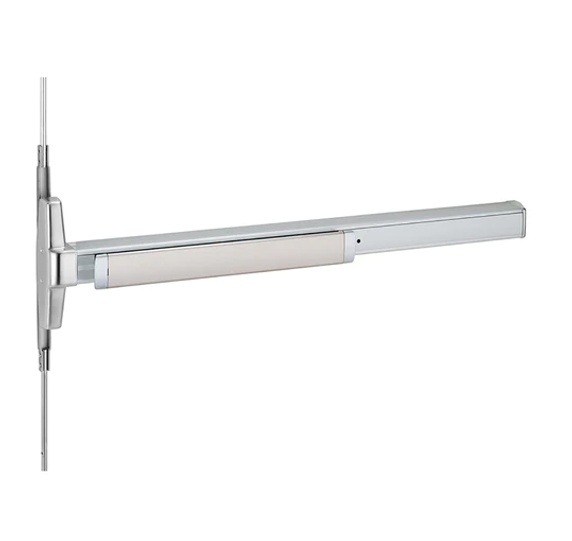

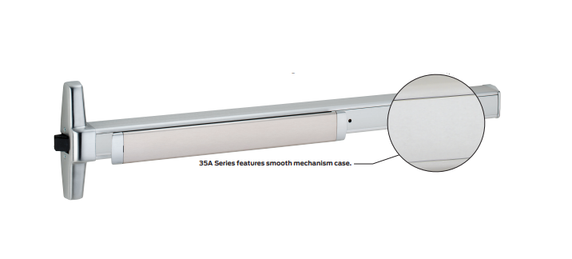

Von Duprin 3547A-EO-710-36 Narrow Stile CVR Concealed Vertical Rod Exit Device 36inch x 84inch

Product Description

The Von Duprin 3547A-EO-710-36 is a narrow stile CVR concealed vertical rod exit device designed specifically for exit-only functionality. This device does not include any trim and features a hex key dogging mechanism. It is rated as Grade 1, ensuring high quality and reliability. The device accommodates door stiles as narrow as two and one-eighth inches and wood door stiles as narrow as four inches. The one-piece center case cover enhances its structural integrity.

• Grade 1 rated for reliable use
• Designed without trim for exit-only applications
• Compatible with narrow door stiles

Product Highlights

This exit device ensures safety and compliance in commercial settings with its durable construction and effective functionality.

Product Information

Standard Information

• Functions: EO - Exit Only
• Device Handing: Non-Handed

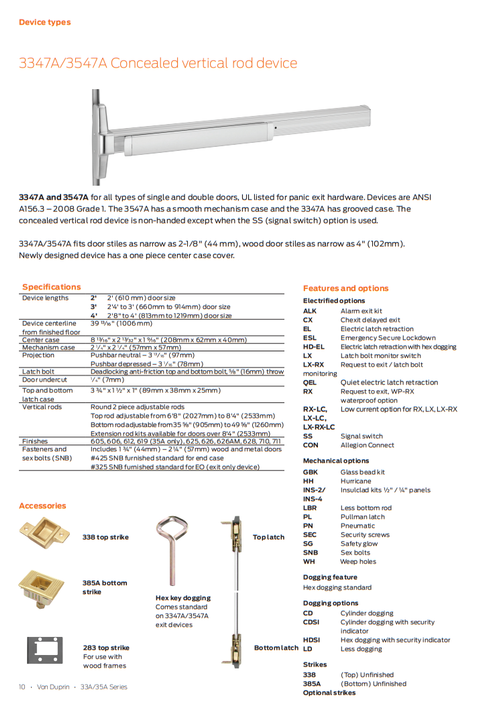

Technical Specifications

• Device lengths 3': 2'4' to 3' (711mm to 914mm)
• Device lengths 4': 2'10inch to 4' (864mm to 1219mm)
• Centerline from finished floor: 39 13/16inch (1006mm)
• Center case dimensions: 8 13/16inch x 2 13/32inch x 1 9/16inch (208mm x 62mm x 40mm)
• Mechanism case size: 2 1/4inch x 2 1/4inch (57mm x 57mm)
• Projection Pushbar neutral: 3 13/16inch (97mm)
• Projection Pushbar depressed: 3 1/16inch (78mm)
• Latch bolt throw: 5/8inch (16mm)
• Door undercut: 1/4inch (7mm)
• Top and bottom latch case size: 3 3/4inch x 1 1/2inch x 1inch (89mm x 38mm x 25mm)

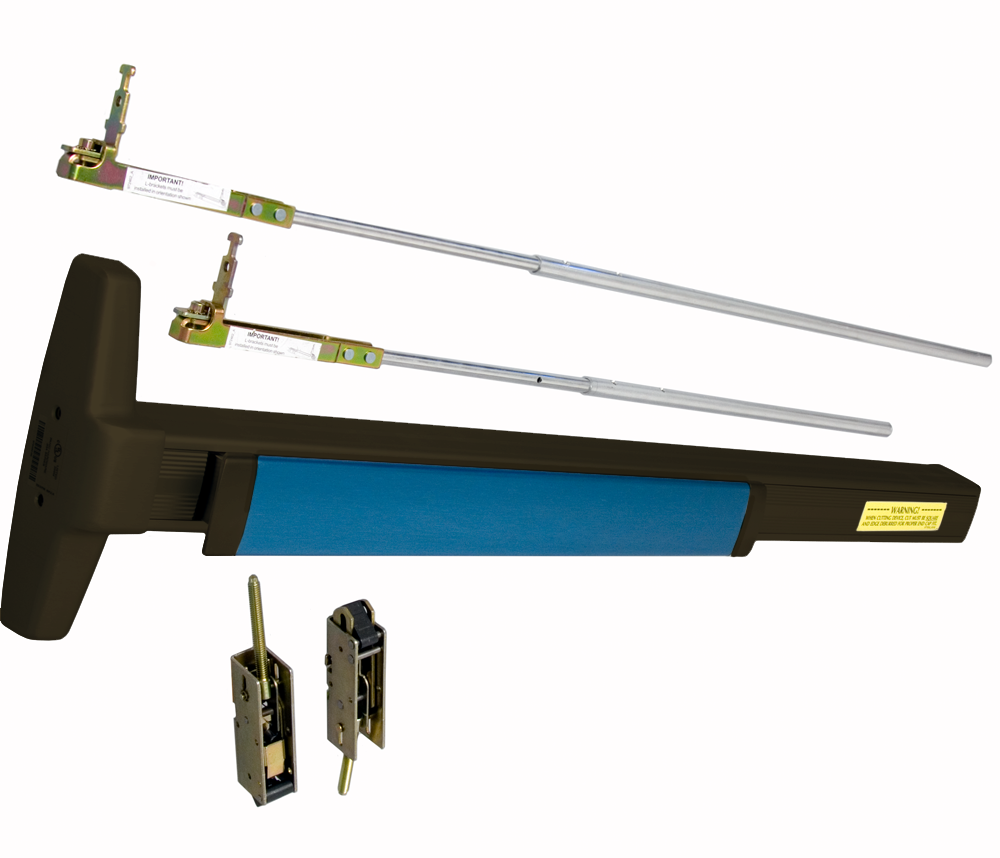

• Vertical rods: Round 2 piece adjustable rods
• Top rod adjustability: From 6'8inch (2027mm) to 8'4inch (2533mm)
• Bottom rod adjustability: From 35 5/8inch (905mm) to 49 5/8inch (1260mm)
• Screw pack included: For 1 3/4inch (44mm) and 2 1/4inch (57mm) wood and metal doors
