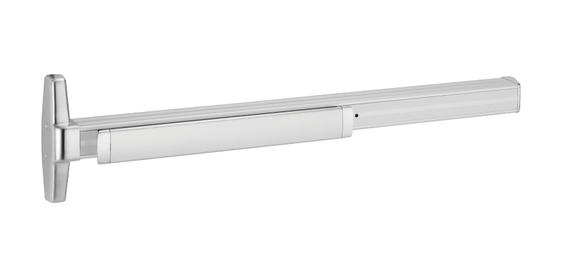

VON DUPRIN 3349A-EO-710-48 Concealed Vertical Cable Device Exit Only

Product Description

The VON DUPRIN 3349A-EO-710-48 is a Grade 1 concealed vertical cable device tailored for exit-only applications. This device supports door stiles as narrow as two and one-eighth inches. Its design includes a one-piece center case cover, enhancing strength and reliability. Being non-handed simplifies the installation process, making it suitable for various door configurations.

• Grade 1 Concealed Vertical Cable Device
• Narrow Stile Pushpad
• Non-Handed Design for Easy Installation

Product Highlights

This exit-only device is optimized for safety and ease of use, ensuring smooth operation in emergency exits.

Product Information

Standard Information

• Device Functions: EO - Exit Only
• Device Lengths: 3' Door size (two foot four inches to three feet); 4' Door size (two foot ten inches to four feet)

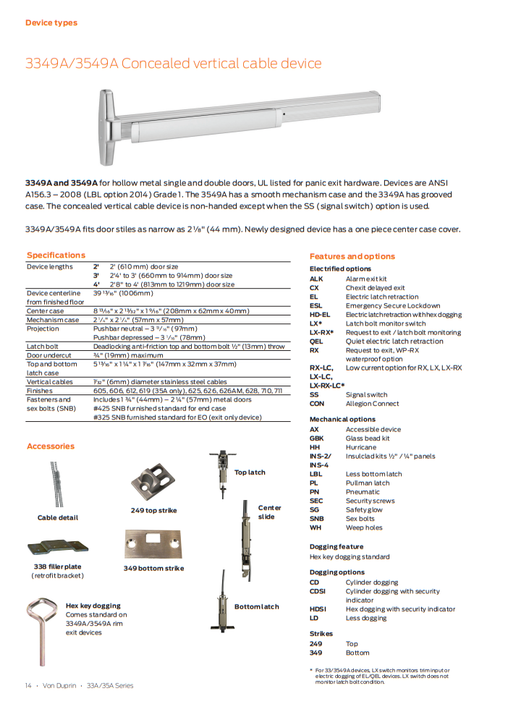

Technical Specifications

• Centerline from Finished Floor: thirty-nine and thirteen-sixteenths inches

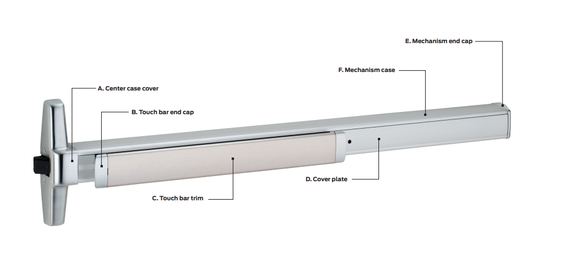

• Center Case Dimensions: eight and thirteen-sixteenths inches by two and thirteen thirty-seconds inches by one and nine sixteenths inches
• Mechanism Case Dimensions: two and one-fourth inches by two and one-fourth inches
• Pushbar Projection (Neutral): three and thirteen-sixteenths inches
• Pushbar Projection (Depressed): three and one-sixteenth inches
• Latch Bolt: half-inch throw
• Door Undercut: three-fourths inch maximum
• Top and Bottom Latch Case Dimensions: five and thirteen-sixteenths inches by one and one-fourth inches by one and seven sixteenths inches
• Vertical Cable Diameter: seven thirty-seconds inches
• Available Finishes: 605, 606, 612, 619, 625, 626, 626AM, 628, 710, 711
• Included Fasteners: screw pack for one and three-fourth inches and two and one-fourth inches wood and metal doors
