VON DUPRIN 3349A-EO-710-36 Concealed Vertical Cable Device Exit Only

Product Description

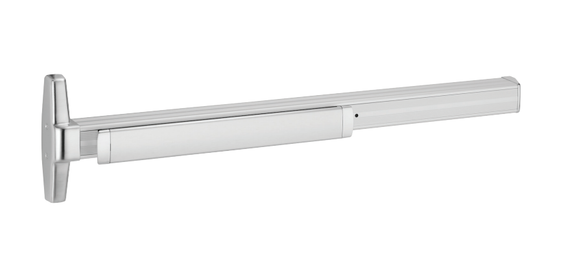

The Von Duprin 3349A-EO-710-36 is a grade 1 concealed vertical cable device. It is designed for hollow metal single and double doors. This exit-only device features a narrow stile pushpad and hex key dogging, making it non-handed.

• Grade 1 concealed vertical cable device
• Narrow stile pushpad
• Fits door stiles as narrow as 2 1/8 inches

Product Highlights

This device is ideal for secure exit applications while maintaining a streamlined appearance.

Product Information

Standard Information

• Device functions: EO - Exit Only
• Device lengths: 3 feet, 4 feet

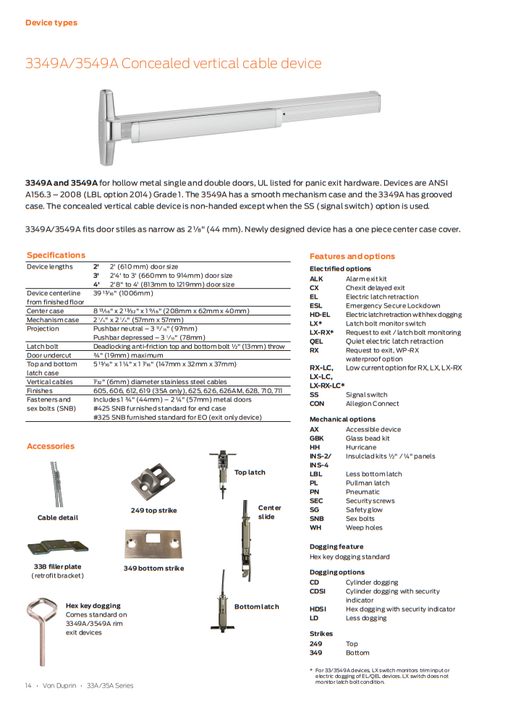

Technical Specifications

• Door size (3'): 2 feet 4 inches to 3 feet
• Door size (4'): 2 feet 10 inches to 4 feet
• Device centerline from finished floor: 39 13/16 inches

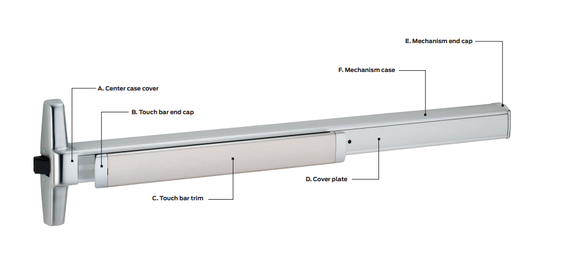

• Center case dimensions: 8 13/16 inches x 2 13/32 inches x 1 9/16 inches
• Device handing: Non-Handed

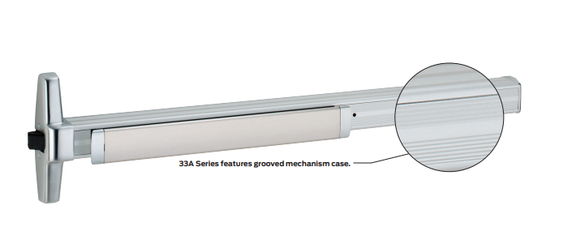

• Mechanism case: 2 1/4 inches x 2 1/4 inches
• Projection (Pushbar neutral): 3 13/16 inches
• Projection (Pushbar depressed): 3 1/16 inches
• Latch bolt: Deadlocking with 1/2 inch throw
• Door undercut: 3/4 inch maximum
• Top and bottom latch case dimensions: 5 13/16 inches x 1 1/4 inches x 1 7/16 inches
• Vertical cables: 7/32 inches diameter stainless steel cables
• Finishes available: 605, 606, 612, 619, 625, 626, 626AM, 628, 710, 711
• Fasteners and sex bolts: Includes screw pack for wood and metal doors
• Electrical rating (Standard): 2 amp maximum @ 24VDC
• Electrical rating (Low Current): below 50 Milliamps @ 24VDC
