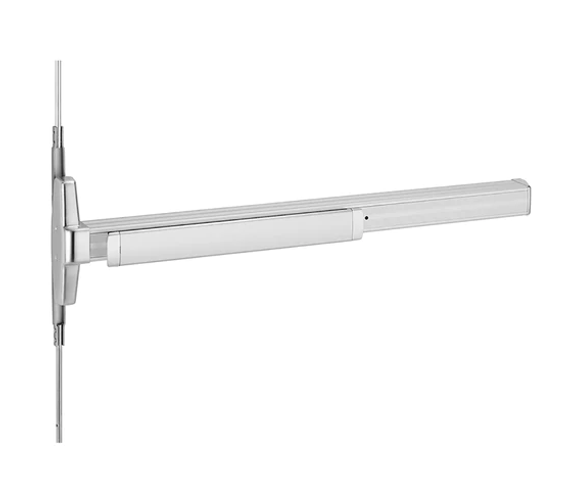

VON DUPRIN 3347A-EO-711-48 Narrow Stile CVR Concealed Vertical Rod Exit Device 48 x 84

Product Description

The VON DUPRIN 3347A-EO-711-48 is a narrow stile CVR concealed vertical rod exit device suitable for single and double doors. This exit device is designed for exit-only applications and is UL listed for panic exit hardware.

• Fits door stiles as narrow as 1-3/4 inches (44 mm).
• Includes a deadlocking latchbolt to ensure security against forced entry.
• Equipped with a fluid dampener to reduce noise during operation.

Product Highlights

The exit device functions as an EO (Exit Only) option, making it ideal for high-traffic areas.

Product Information

Standard Information

• Brand: VON DUPRIN
• MPN: 3347A-EO-711-48

Technical Specifications

• Alternate Part Number: 178953
• Device Lengths: 3 feet 2 inches to 3 feet 5 inches (711 mm to 914 mm); 4 feet 2 inches to 4 feet 10 inches (864 mm to 1219 mm)
• Strikes: Top 338 Unfinished; Bottom 385A Unfinished
• Dogging Feature: Hex key dogging standard
• Electric Options: LX Latchbolt Monitor Switch; RX Pushpad Monitor Switch; EL Electric Latch Retraction
• Vertical Rods: Round 2 piece adjustable rods
• Voltage: 24VDC
• Current: 1.0 A Inrush (0.5 sec.) / 0.14 A Holding
