Von Duprin 3347A-EO-710-36 Concealed Vertical Rod Exit Device Exit Only

Product Description

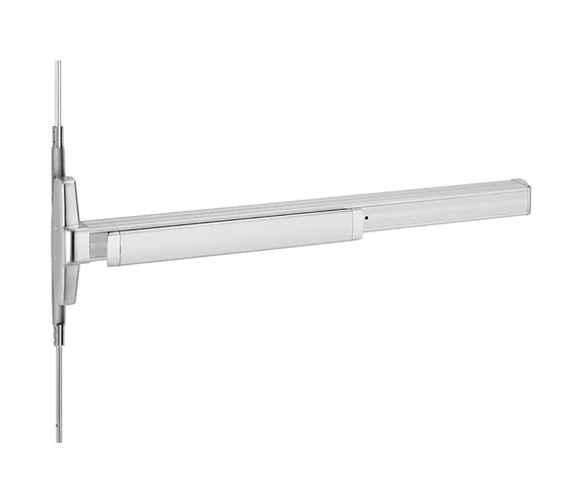

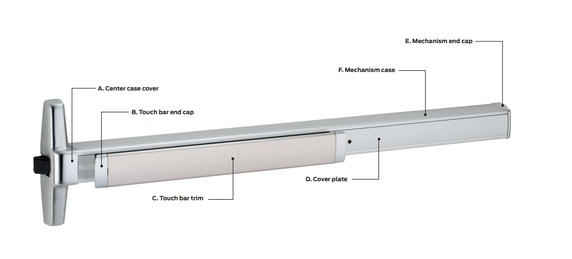

The Von Duprin 3347A-EO-710-36 is a concealed vertical rod exit device designed specifically for exit-only use. It is suitable for narrow stile doors, with compatibility for stiles as narrow as two and one-eighth inches, making it ideal for various applications. This device combines quality and reliable operation, featuring a one-piece center case cover for durability. Its non-handed design allows for flexibility in installation.

• Grade 1 construction for reliable use
• Narrow stile compatibility for versatile applications
• Non-handed operation for easy installation

Product Highlights

This exit device is built for narrow door applications, ensuring easy egress without the need for complex mechanisms.

Product Information

Standard Information

• Device Functions: EO - Exit Only
• Door Type: Aluminum

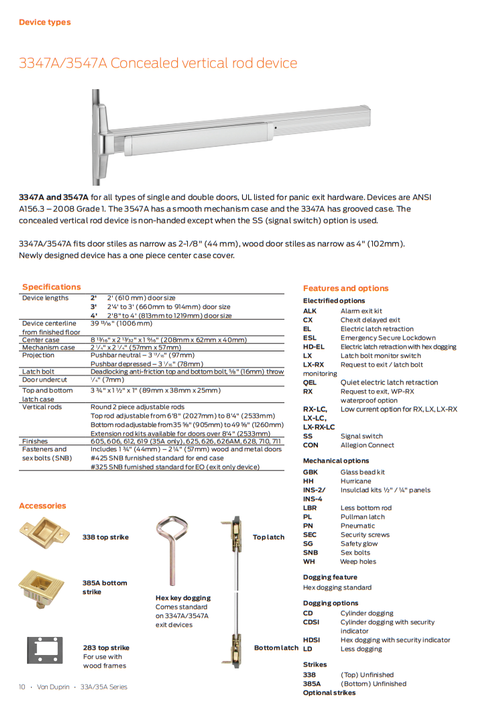

Technical Specifications

• Device Lengths: Three feet; Two feet four inches to three feet (711mm to 914mm) door size; Four feet; Two feet ten inches to four feet (864mm to 1219mm) door size
• Centerline from Finished Floor: Thirty-nine and thirteen-sixteenths inches (1006mm)
• Center Case Dimensions: Eight and thirteen-sixteenths inches x two and thirteen-thirty-seconds inches x one and nine-sixteenths inches (208mm x 62mm x 40mm)
• Mechanism Case Dimensions: Two and one-fourth inches x two and one-fourth inches (57mm x 57mm)
• Latch Bolt Throw: Five-eighths inch (16mm)
• Adjustable Top Rod Length: Six feet eight inches (2027mm) to eight feet four inches (2533mm)
• Adjustable Bottom Rod Length: Thirty-five and five-eighths inches (905mm) to forty-nine and five-eighths inches (1260mm)
