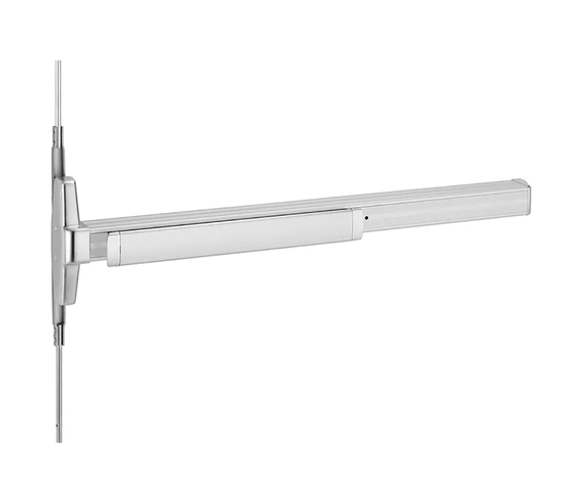

VON DUPRIN 3347A-EO-626-48 Concealed Vertical Rod Exit Device Exit Only

Product Description

The Von Duprin 3347A-EO-626-48 is a grade 1 concealed vertical rod exit device designed specifically for exit-only applications. This unit features a narrow stile pushpad and operates under a non-handed design. Hex key dogging provides added security and functionality, making it suitable for various door installations.

• Grade 1 certification ensures durability and reliability.
• Fits door stiles as narrow as two and one-eighth inches.
• Simple installation with a one-piece center case cover.

Product Highlights

This exit device is ideal for high-traffic areas where quick egress is essential. It is designed for commercial door applications.

Product Information

Standard Information

• Device functions: EO - Exit Only
• Non-handed design

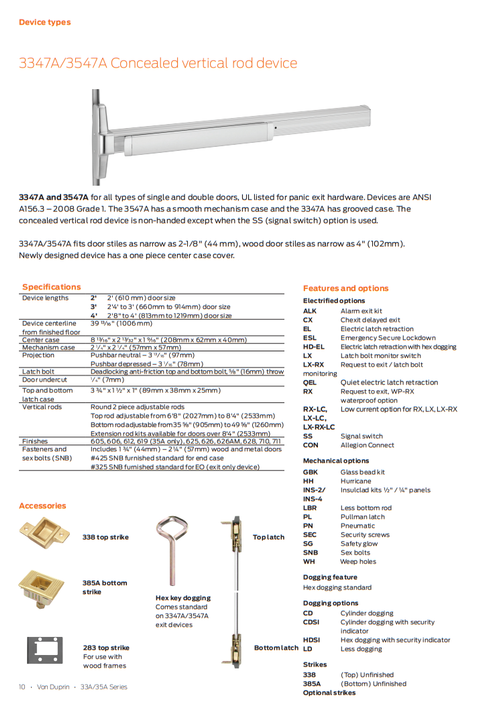

Technical Specifications

• Device lengths 3': 2'4inch to 3' (711mm to 914mm)
• Device lengths 4': 2'10inch to 4' (864mm to 1219mm)
• Centerline from finished floor: 39 13/16inch (1006mm)

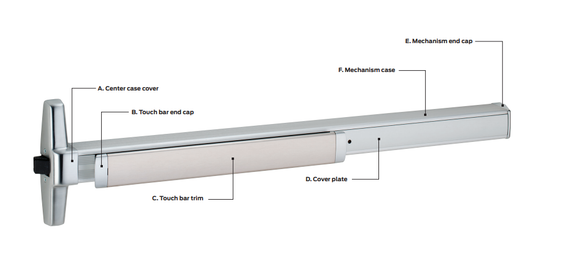

• Center case dimensions: 8 13/16inch x 2 13/32inch x 1 9/16inch (208mm x 62mm x 40mm)
• Mechanism case dimensions: 2 1/4inch x 2 1/4inch (57mm x 57mm)
• Projection Pushbar neutral: 3 13/16inch (97mm)
• Projection Pushbar depressed: 3 1/16inch (78mm)
• Latch bolt throw: 5/8inch (16mm)
• Top and bottom latch case dimensions: 3 3/4inch x 1 1/2inch x 1inch (89mm x 38mm x 25mm)
• Vertical rods: Round two-piece adjustable rods
• Top rod adjustable from: 6'8inch (2027mm) to 8'4inch (2533mm)
• Bottom rod adjustable from: 35 5/8inch (905mm) to 49 5/8inch (1260mm)
• Finishes available: 605, 606, 612, 619 (35A only), 625, 626, 626AM, 628, 710, 711
• Includes fasteners and sex bolts (SNB) for wood and metal doors
