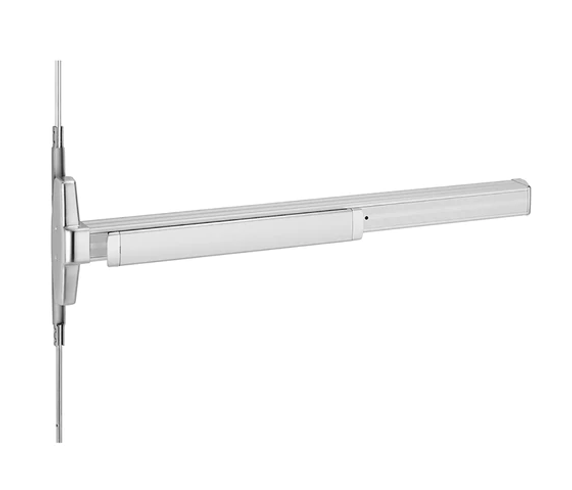

VON DUPRIN 3347A-EO-626-36 Narrow Stile CVR Concealed Vertical Rod Exit Device 36 inch

Product Description

The VON DUPRIN 3347A-EO-626-36 is a concealed vertical rod exit device that is designed for use on exit-only doors. It is suitable for door widths of thirty-six inches and works with aluminum, hollow metal, or wood doors. This device features hex key dogging and a push bar style for ease of use.

• Field reversible for versatile installation
• Exit only function for safety compliance
• Compatible with standard door sizes

Product Highlights

This exit device is built to secure emergency exits while providing easy access from the inside.

Product Information

Standard Information

• Brand: VON DUPRIN
• MPN: 3347A-EO-626-36

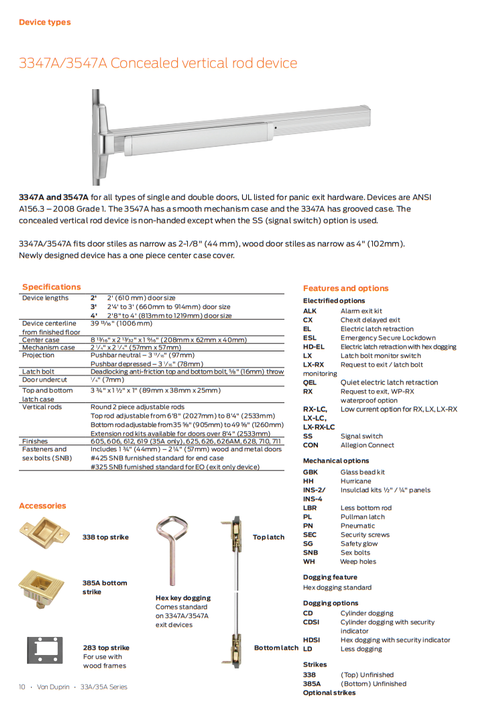

Technical Specifications

• Handing: Field Reversible
• Function: Exit Only
• Door Width: 36 inches
• Door Type: Aluminum, Hollow Metal, Wood
• Exit Device Type: CVR - Concealed Vertical Rod
• Dogging: Hex Key
• Bar Style: Push Bar
• Device Functions: EO - Exit Only
• Device Lengths (3'): 2'4'' to 3' (711mm to 914mm)
• Device Lengths (4'): 2'10'' to 4' (864mm to 1219mm)
• Device Centerline from Finished Floor: 39 13/16 inches (1006mm)

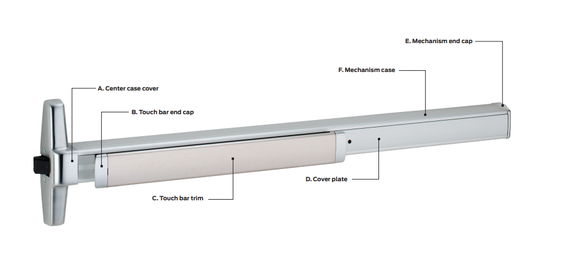

• Center Case: 8 13/16 inches x 2 13/32 inches x 1 9/16 inches (208mm x 62mm x 40mm)
• Device Handing: Non-Handed (except when the SS option is used)
• Mechanism Case: 2 1/4 inches x 2 1/4 inches (57mm x 57mm)
• Projection Pushbar Neutral: 3 13/16 inches (97mm)
• Projection Pushbar Depressed: 3 1/16 inches (78mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt 5/8 inches (16mm) throw
• Door Undercut: 1/4 inches (7mm)
• Top and Bottom Latch Case: 3 3/4 inches x 1 1/2 inches x 1 inches (89mm x 38mm x 25mm)
• Vertical Rods: Round 2 piece adjustable rods
• Top Rod Adjustable From: 6'8'' (2027mm) to 8'4'' (2533mm)
• Bottom Rod Adjustable From: 35 5/8 inches (905mm) to 49 5/8 inches (1260mm)
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1 3/4 inches (44mm) and 2 1/4 inches (57mm) wood and metal doors
• #425 SNB: Furnished standard for end case
• #325 SNB: Furnished standard for EO (exit only device)
