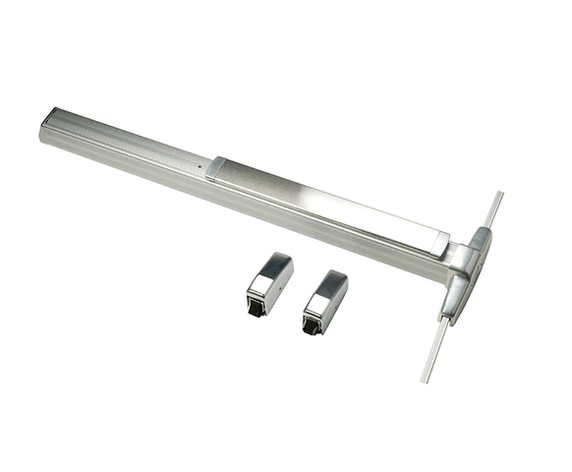

VON DUPRIN 3327A-EO-710-48 Narrow Stile SVR Surface Vertical Rod Exit Device Exit Only 48 x 84

Product Description

The VON DUPRIN 3327A-EO-710-48 is a narrow stile SVR surface vertical rod exit device designed for exit-only applications. This product is compatible with aluminum, hollow metal, and wood doors. It is a Grade 1 exit device equipped with hex key dogging and features a push bar design. It fits door stiles as narrow as one and three-fourth inches and includes a one-piece center case cover.

• Field reversible handing
• Exit only function for added security
• Compatible with various door materials

Product Highlights

Designed specifically for exit-only situations, the VON DUPRIN 3327A-EO-710-48 ensures safety and accessibility. It is easy to install and operate, meeting the needs of various building codes.

Product Information

Standard Information

• Brand: VON DUPRIN
• MPN: 3327A-EO-710-48

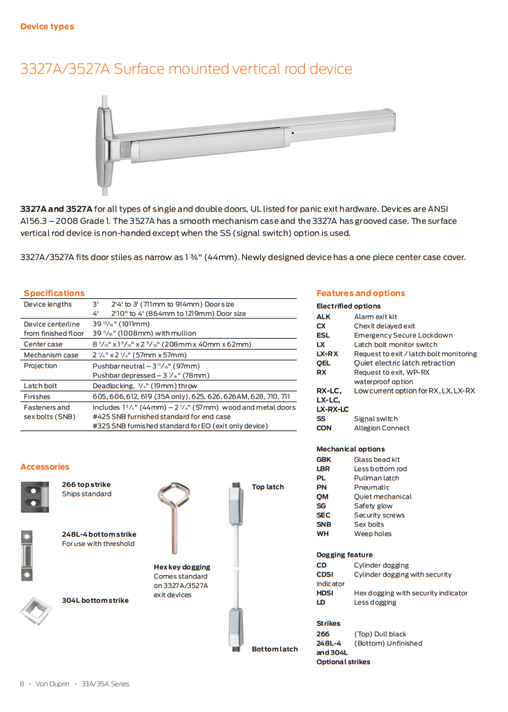

Technical Specifications

• Alternate Part Number: 174231
• Handing: Field reversible
• Function: Exit only
• Door Width: 48 inches
• Door Type: Aluminum, Hollow Metal, Wood
• Exit Device Type: SVR - Surface Vertical Rod
• Dogging: Hex Key
• Bar Style: Push Bar
• Device Functions: EO - Exit Only
• Device Lengths: three feet, four feet
• Device Centerline from Finished Floor: thirty-nine and thirteen-sixteenth inches (1011mm), thirty-nine and eleven-sixteenth inches (1008mm) with mullion

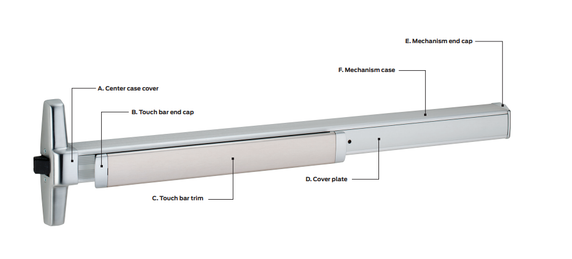

• Center Case: eight and three-sixteen inches x one and nine-sixteenth inches x two and thirteen thirty-seconds inches (208mm x 40mm x 62mm)
• Device Handing: Non-handed (except when the SS option is used)
• Mechanism Case: two and one-fourth inches x two and one-fourth inches (57mm x 57mm)
• Projection: pushbar neutral Ø three and thirteen-sixteenth inches (97mm), pushbar depressed Ø three and one-sixteenth inches (78mm)
• Latch Bolt: Deadlocking, three-fourth inch (19mm) throw
• Finishes: 605, 606, 612, 619 (35A only), 625, 626, 626AM, 628, 710, 711
• Fasteners and Sex Bolts (SNB): Includes screw pack for one and three-fourth inches (44mm) and two and one-fourth inches (57mm) wood and metal doors
• Device Lengths Door Size: two feet four inches to three feet (711mm to 914mm), two feet ten inches to four feet (864mm to 1219mm)
