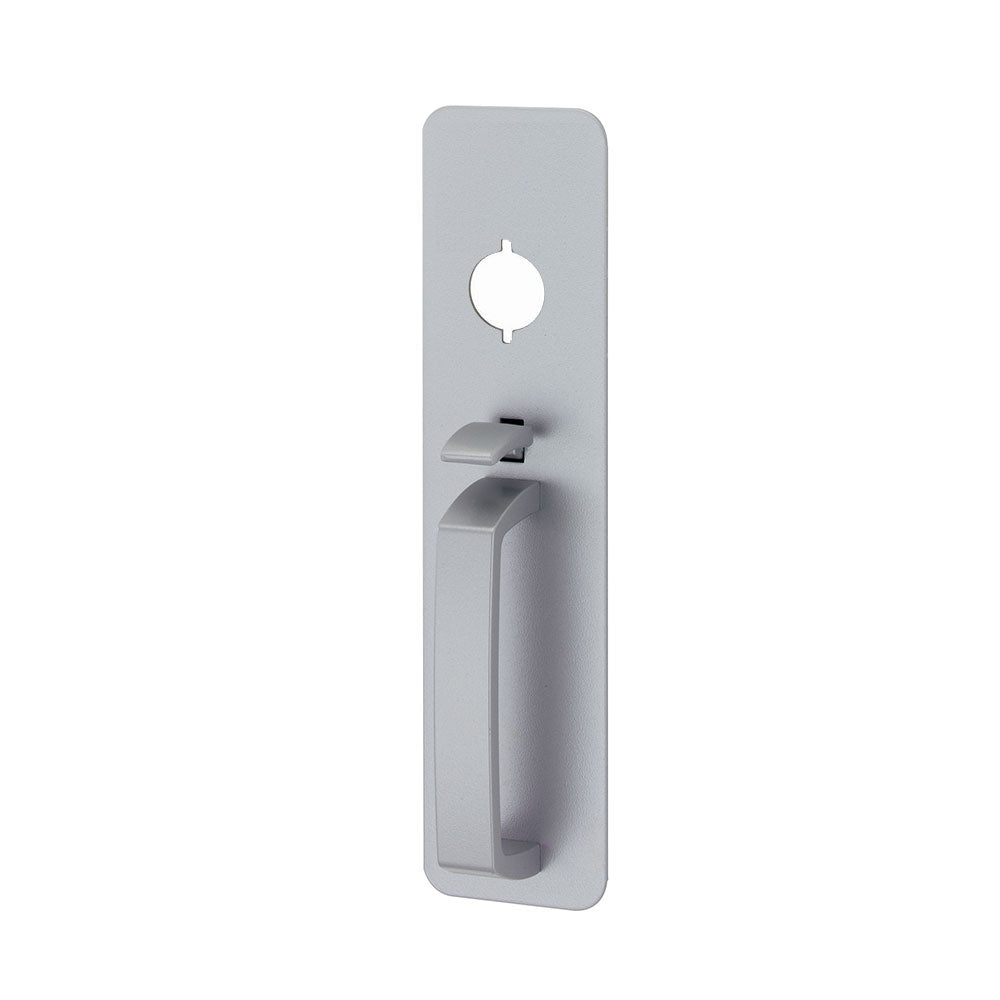

VON DUPRIN 230TP-689 Thumbpiece Pull Trim for 22 Series Exit Device

Product Description

The VON DUPRIN 230TP-689 is designed for use with 22 Series Exit Devices. This trim has a classroom function and features a thumbpiece pull. It includes a standard escutcheon plate sized three inches by twelve one-sixteenth inches with a thickness of three thirty-seconds inches. The unit has a two-inch projection, providing reliable access control. A mortise cylinder is required and must be ordered separately.

• Grade 1 Exit Trim
• Fits all 22 Series Devices
• ADA Compliant

Product Highlights

This exit trim is suitable for medium-duty applications and is designed for easy installation.

Product Information

Standard Information

• Brand: VON DUPRIN
• Function: Thumbpiece Entry

Technical Specifications

• Finishes: 526 Powder Coated Chrome, 622 Matte Black, 689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated)
• Cylinder: 1-1/4 inches Mortise Cylinder (sold separately)
• Usage: Medium Duty
• Hand: Non-handed
• Escutcheon Plate Size: 3 inches x 12-1/16 inches x 3/32 inches
• Pull Center to Center: 5-1/2 inches
• Projection: 2 inches
• ANSI Function: 05
• Approved for Commercial Use: Yes
• Collection: 230 Collection
• Configuration: Exterior Trim
• Height: 12.0625 inches
• Material: Stainless Steel
• Width: 3 inches
• BHMA Grade: Grade 1
• Door Thickness: 1-3/4 inches
• Exit Trim Function: Keyed Entry
• Fire Rated: No
• Panic Proof: Yes
• UL Listed: Yes
