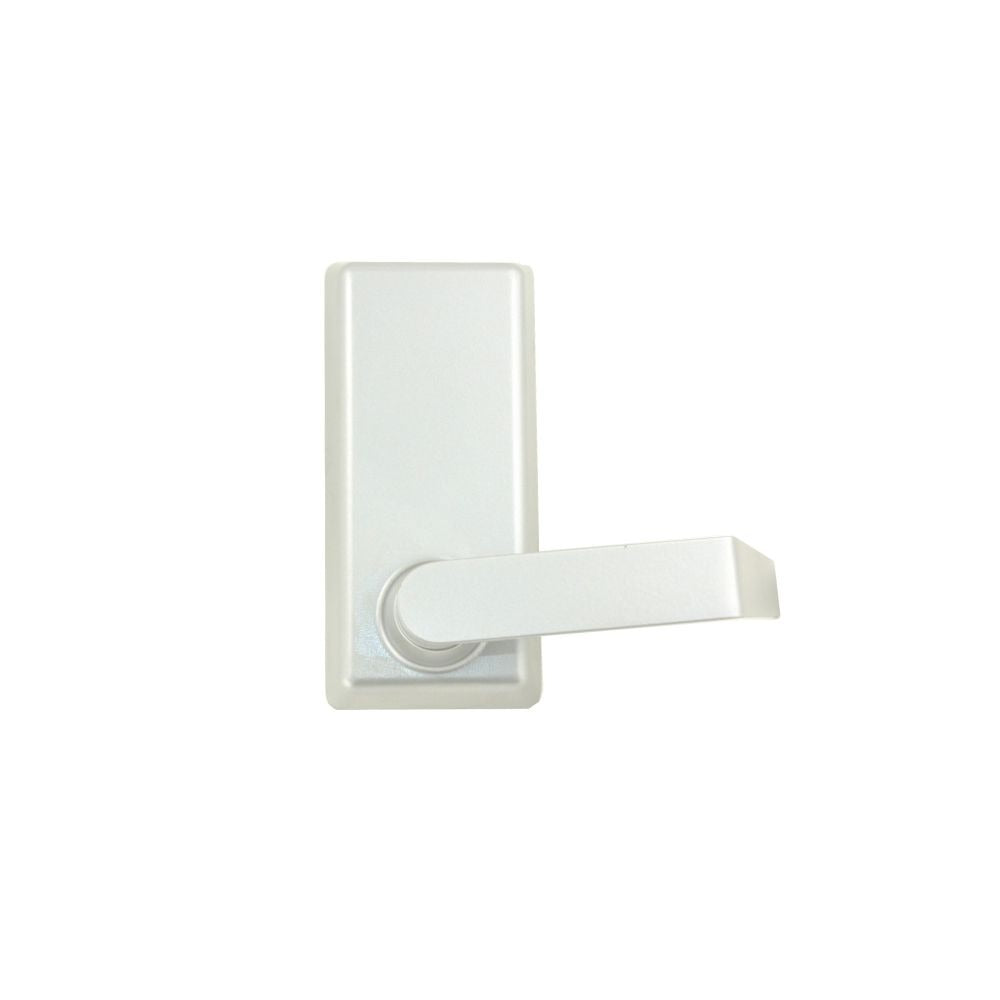

Von Duprin 230LBE689RHR Lever Blank Escutcheon Trim 22 Series

Product Description

The VON DUPRIN 230LBE689RHR is a right hand reverse lever blank escutcheon trim designed for use with Von Duprin 22 Series exit devices. This trim assembly provides a finished, code-compliant lever handle interface on the interior side of a door equipped with a 22 Series panic hardware bar. It is finished in 689 aluminum and ships as a single unit. Locksmiths, door hardware specialists, and commercial contractors install this trim as part of a complete exit device assembly in public-access or commercial door applications.

This trim is suited for commercial and institutional buildings where 22 Series Von Duprin exit devices are specified. Right hand reverse (RHR) designation applies to doors that are hinged on the right when viewed from the secure side. The blank escutcheon lever configuration is used when a passage-style lever function is required without a cylinder or outside trim cut-out. Typical applications include stairwell doors, corridor doors, and interior egress doors in office, school, and healthcare facilities.

Key Features

• Right hand reverse (RHR) handing for correct fit on RHR door configurations
• Blank escutcheon lever design suits passage-function applications without cylinder prep
• 689 aluminum finish provides a clean, neutral appearance consistent with commercial hardware standards
• Designed for the Von Duprin 22 Series exit device product line
• Sold as a single assembly unit for individual door installations

Compatibility

Designed for use with Von Duprin 22 Series exit devices in a right hand reverse door configuration.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with commercial exit device assemblies. Disengage all electrical power to any electrified hardware at the door before beginning work. Verify door handing before ordering and installing trim to ensure correct fit. Follow all applicable local building codes and ANSI A156 hardware standards for egress hardware installation.
