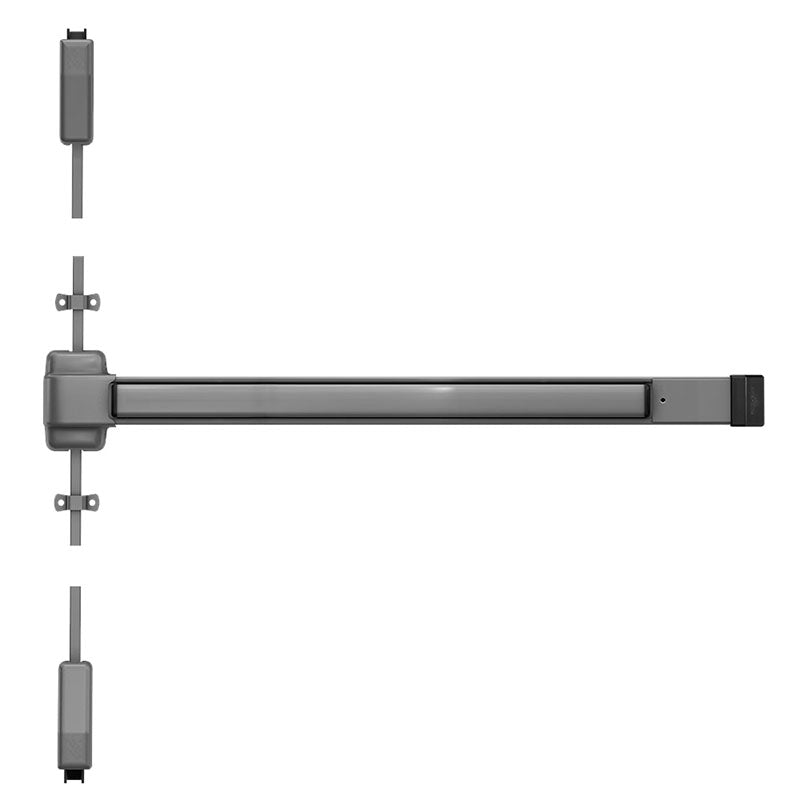

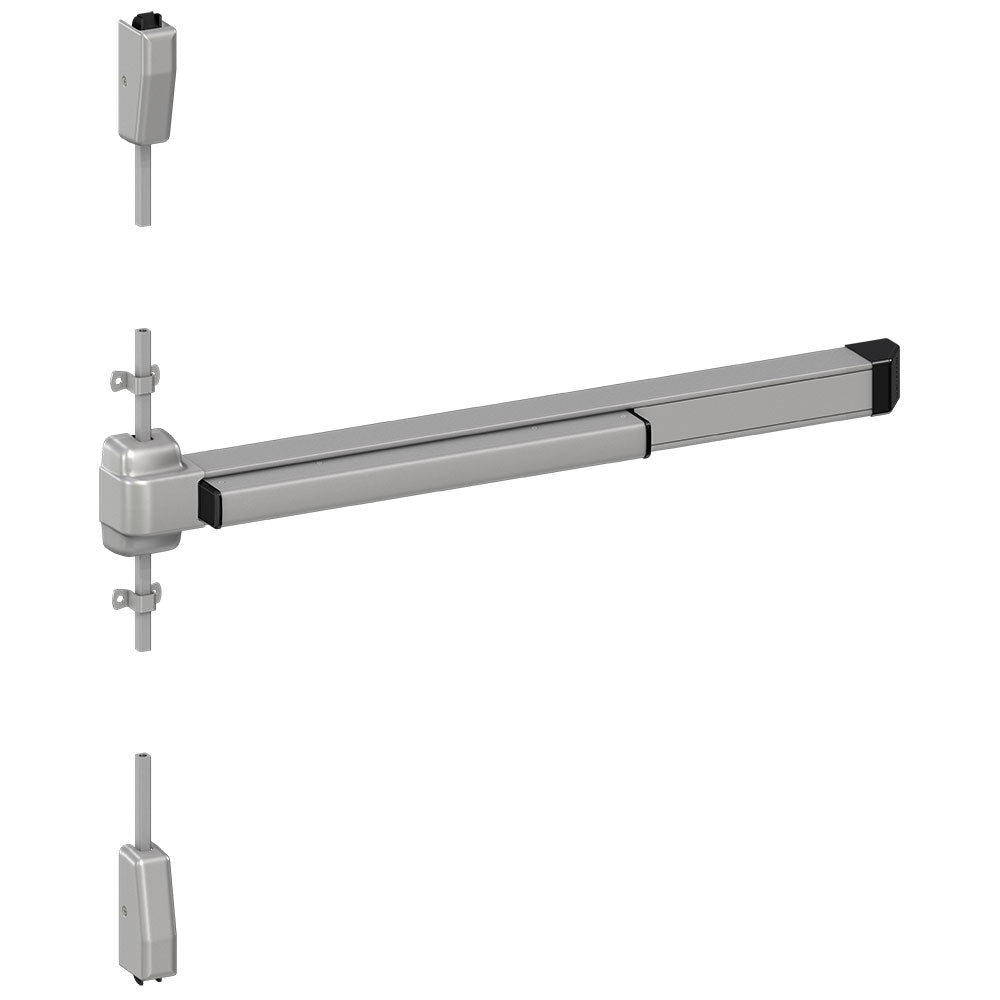

Von Duprin 2227EO-F-689-36 Grade-1 Surface Vertical Rod Panic Exit Device Fire-Rated Exit Only 7ft Height

Product Description

The Von Duprin 2227EO-F-689-36 is a Grade-1 surface vertical rod panic exit device. This fire-rated exit only device is ideal for high safety standards in commercial settings. It is designed for doors with a height of seven feet and offers durable and reliable performance.

• UL listed for Panic Hardware and Fire Hardware
• Non-handed design for versatile installation
• Suitable for medium traffic areas

Product Highlights

This device is ANSI/BHMA A156.3-2008 Grade 1 certified.

Product Information

Standard Information

• Brand: Von Duprin
• Usage: Medium Duty

Technical Specifications

• Device Type: Surface Rod Device
• Fire Rating: UL listed A or B label Fire-Rated (3 Hours)
• Height Compatibility: 7'0inch
• Latchbolt: Deadlatching, 3/4inch throw
• Device Length: 36 inches or 48 inches
• Stile Type: Wide (Standard)
• Installation: Commercial
• Weight: 14 pounds
• Dogging: Hex Key
• Projection: 3-3/4inch Maximum, 3inch Depressed
• Deadline: Meets Buy American Act
