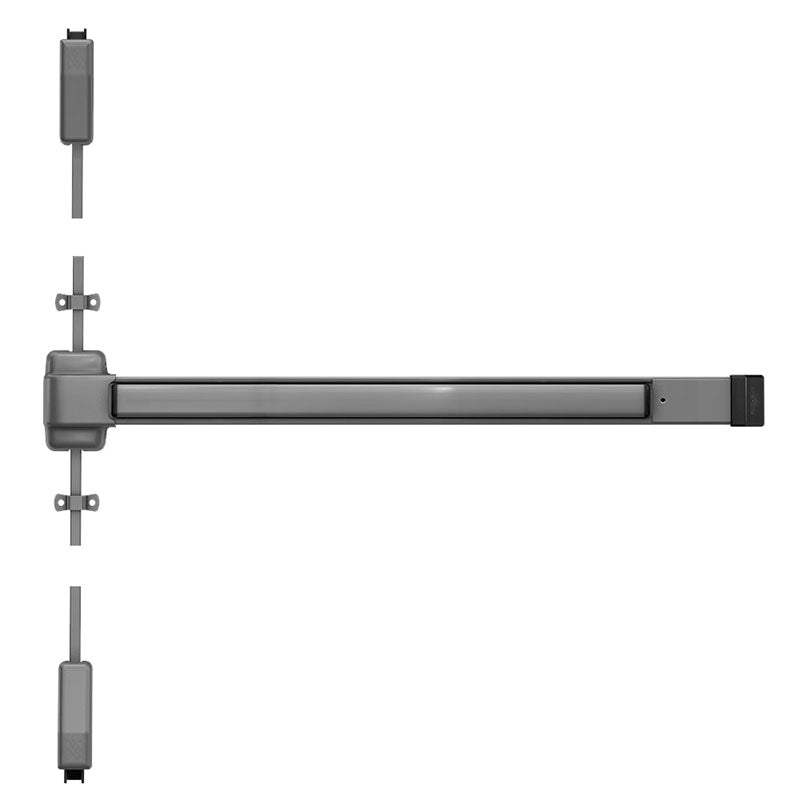

Von Duprin 2227EO-695-36 Surface Vertical Rod Exit Device Exit Only 84

Product Description

The Von Duprin 2227EO-695-36 is a Grade 1 surface vertical rod panic exit device. This exit-only device is UL listed and ANSI A156.3 Grade 1 compliant. It fits stock hollow metal doors with eighty-six or one hundred sixty-one cutouts, accommodating door stiles as narrow as three and five-eighths inches. The device is field reversible and has a non-handed design.

• UL listed for panic exit hardware.
• Mechanical function: Exit only, accepts various trim.
• Dogging options: Hex key dogging.

Product Highlights

The Von Duprin 2227EO-695-36 is ideal for commercial exit applications, ensuring safety and compliance with industry standards.

Product Information

Standard Information

• Manufacturer: Von Duprin
• Grade: Grade 1

Technical Specifications

• Installation: Commercial
• Origin: USA
• UL Listing Type: UL 305
• ANSI Number: A156.3
• Limited Warranty: 3 Years
• Device Type: Surface Vertical Rod
• Device Length: 36 inches or 48 inches
• Door Width: 36 inches
• Door Height: 84 inches
• Door Thickness: 1-3/4 inches to 2-1/4 inches
