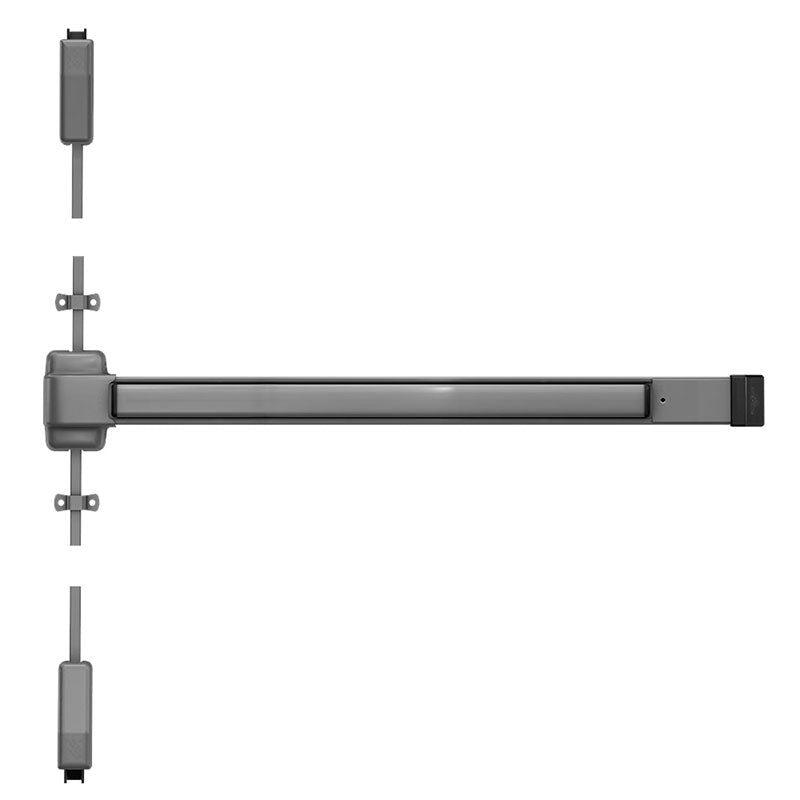

VON DUPRIN 2227EO-689-48 Surface Vertical Rod Exit Device Exit Only 48 inch

Product Description

The VON DUPRIN 2227EO-689-48 is a surface vertical rod exit device made for exit-only applications. This Grade 1 panic device is designed to function without trim, offering hex key dogging and field reversibility. With a UL listing for panic exit hardware and adherence to ANSI A156.3 Grade 1 standards, it fits door stiles as narrow as three and five-eighths inches.

• Grade 1 construction
• Hex key dogging feature
• Field reversible for easy installation

Product Highlights

This model is ideal for commercial environments requiring a secure exit. It allows for efficient egress while ensuring safety compliance.

Product Information

Standard Information

• Manufacturer: Von Duprin
• Installation: Commercial

Technical Specifications

• Grade: Grade 1
• Device Type: Surface Vertical Rod
• Mechanical Function: Exit Only
• Device Length: 48 inches
• Minimum Stile Size: 3-5/8 inches
• Door Material: Metal or Wood
• Door Width: 48 inches
• Door Thickness: 1-3/4 inches - 2-1/4 inches
• Handing: Field Reversible
• Dogging Options: Hex Key Dogging
• Includes Trim: No
• Trim Type: Less trim
• Reversible: Yes
