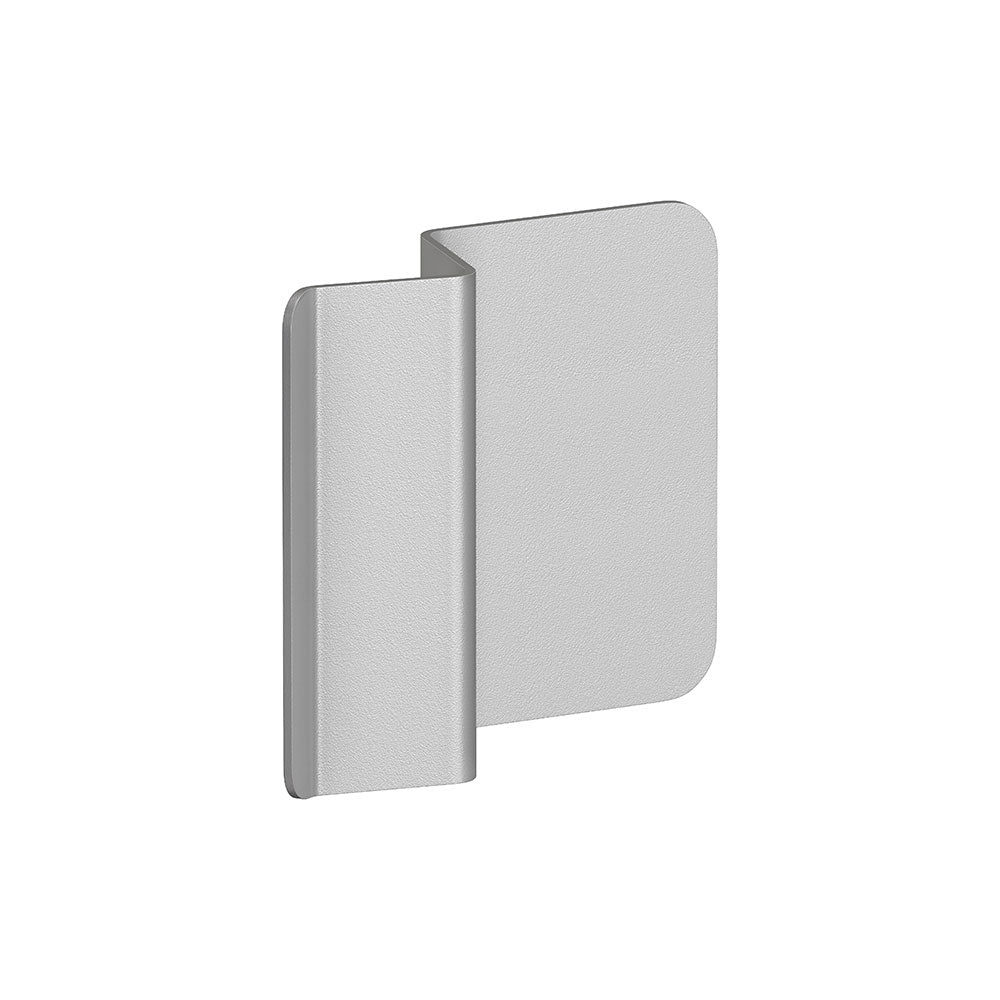

Von Duprin 210DT-689 Dummy Pull Trim for 22 Series Exit Device

Product Description

The Von Duprin 210DT-689 is a dummy pull trim designed for the 22 series exit devices. It provides a reliable solution for door access with its robust construction. This trim is perfect for use with dogged panic devices and is rated for commercial environments.

• Grade 1 exit device trim.
• Function: Pull when Dogged.
• Constructed from heavy-duty stainless steel.

Product Highlights

The Von Duprin 210DT-689 is essential for enhancing security and accessibility in commercial buildings.

Product Information

Standard Information

• Brand: Von Duprin
• Finishes: 526 Powder Coated Chrome, 622 Matte Black, 689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated)

Technical Specifications

• Function: Dummy Pull
• Hand: Non-handed
• Usage: Medium Duty
• ADA Compliant: Yes
• Approved for Commercial Use: Yes
• Collection: 210 Collection
• Height: 4.7813 inches
• Material: Stainless Steel
• Width: 5.75 inches
• BHMA Grade: Grade 1
• Door Thickness: 1-3/4 inches
• Panic Proof: Yes
• UL Listed: Yes
• Escutcheon Plate Size: 5-3/8 inches x 4-25/32 inches x 3/32 inches
• Projection: 1-31/32 inches
