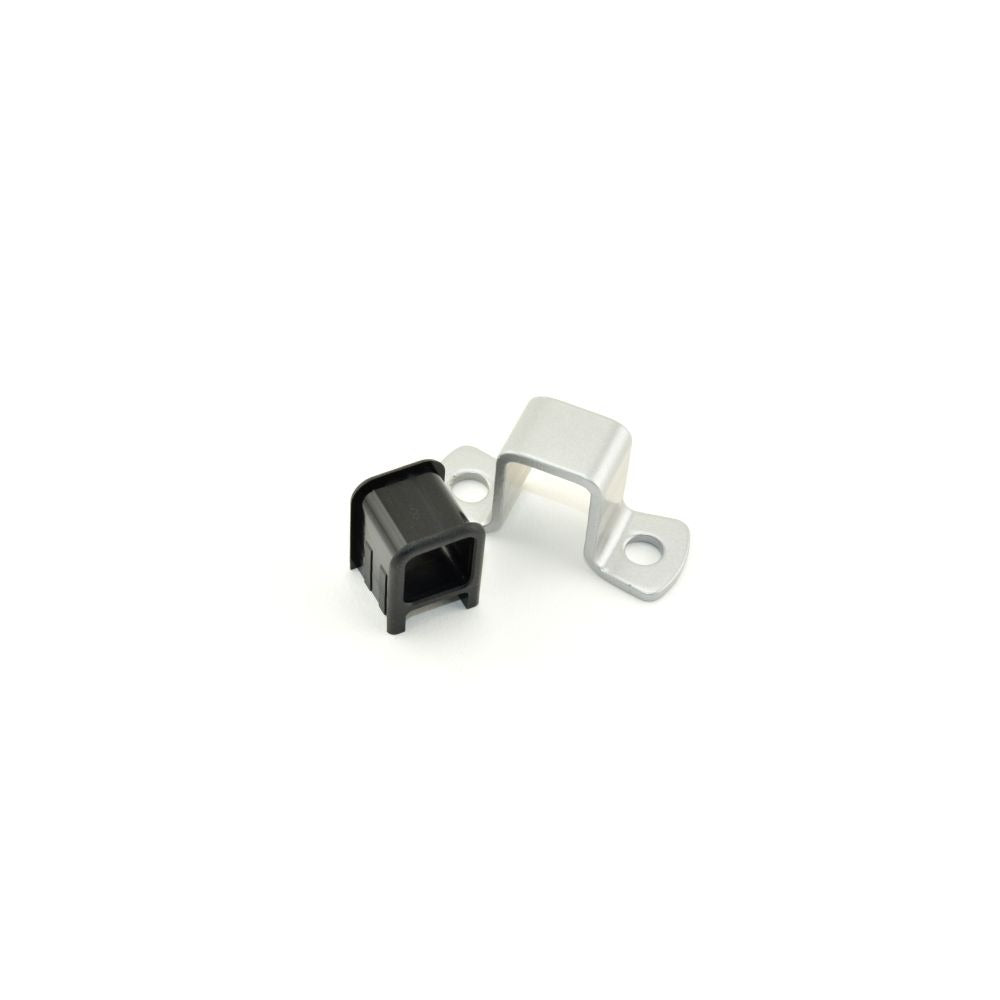

Von Duprin 11206328 Rod Guide Assembly 628 Anodized Aluminum

Product Description

The VON DUPRIN 11206328 is a rod guide assembly designed as a replacement component for Von Duprin 98, 99, and 27-F series exit devices. The rod guide keeps the push rod properly aligned and seated during panic hardware operation, preventing binding and ensuring reliable door release. Measuring 2 inches in length, 1 inch in width, and 0.55 inches in height, this compact part carries a 628 anodized aluminum finish that resists corrosion in high-traffic commercial environments. Weighing 0.05 pounds, it is sold as an individual unit. Installation is typically performed by a licensed locksmith, door hardware technician, or facilities maintenance professional.

This rod guide assembly is intended for use in commercial and institutional settings where Von Duprin 98, 99, and 27-F series panic exit hardware is installed. Typical applications include interior and exterior egress doors in schools, hospitals, office buildings, and other public facilities. The 628 anodized aluminum finish is a standard commercial finish that blends with aluminum door and hardware profiles commonly found in these environments.

Key Features

• Designed for Von Duprin 98, 99, and 27-F series exit device rods
• 628 anodized aluminum finish for corrosion resistance in high-traffic applications
• Compact form factor: 2 inches long, 1 inch wide, 0.55 inches tall
• Lightweight at 0.05 pounds — minimal added load on existing hardware
• Sold as a single unit (EA) for direct replacement service

Compatibility

Designed as a direct replacement rod guide for Von Duprin 98, 99, and 27-F series panic exit devices.

Installation Notes

Installation should be performed by a qualified door hardware technician or licensed locksmith familiar with panic exit device service. Before beginning work, ensure the door is secured in an open position and that any connected electrified hardware is de-energized. Verify that the replacement rod guide is properly seated and that the push rod moves freely through the guide without binding before returning the door to service. Egress hardware work in commercial facilities must comply with applicable fire and life safety codes, including NFPA 101.
