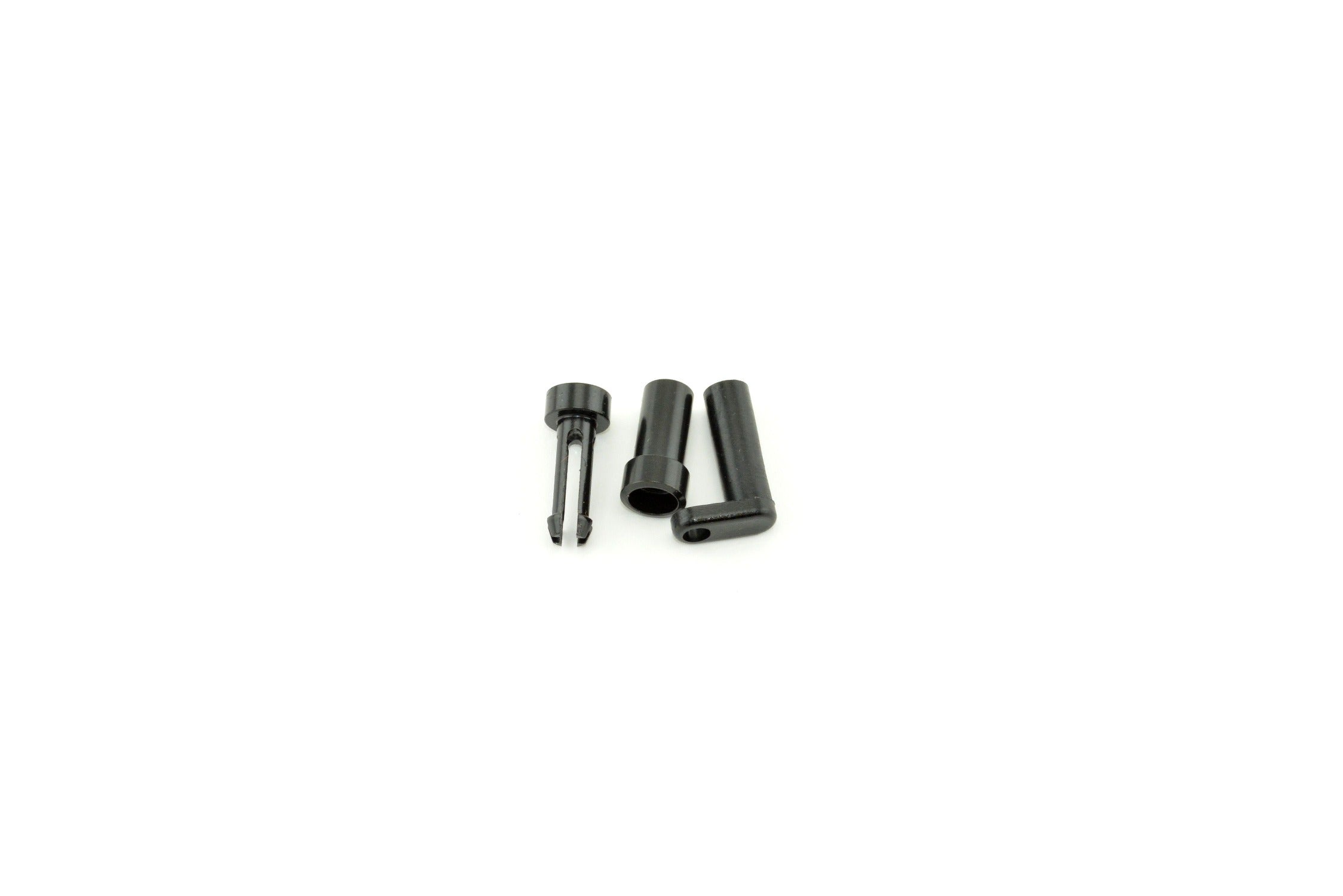

Von Duprin 090082 Lever Arm Axles 88 Series 10-pack

Product Description

The VON DUPRIN 090082 is a pack of 10 lever arm axles designed as replacement hardware for Von Duprin 88 Series exit devices. These axles are the pivot components that allow the lever arm to rotate during push-bar actuation, making them a critical wear part in high-cycle commercial door applications. At 0.5 inches in height with a footprint of 5 inches by 4 inches per pack, the hardware ships as a single package unit. Licensed door hardware technicians and commercial locksmiths install these components during scheduled maintenance or after identifying worn pivot points in the lever arm assembly.

The 090082 axle pack is suited for commercial and institutional facilities where Von Duprin 88 Series panic hardware is installed. Common applications include schools, hospitals, office buildings, and other public occupancies that rely on code-compliant exit devices. Restoring worn axles is a standard part of a preventive maintenance program on high-traffic egress doors, helping maintain consistent lever arm operation and extend the service life of the overall exit device assembly.

Key Features

• Pack of 10 axles allows for stocking of spare parts across multiple doors in a facility
• Designed specifically for Von Duprin 88 Series exit device lever arm assemblies
• Compact package dimensions of 5 inches by 4 inches by 0.5 inches for easy storage
• Lightweight pack at 0.3 pounds for easy handling and transport
• OEM-style replacement maintains original performance standards of the exit device

Compatibility

Designed for use with Von Duprin 88 Series exit devices requiring lever arm axle replacement. Verify the specific lever arm configuration against the 88 Series service documentation before ordering.

Installation Notes

Installation of exit device components should be performed by a licensed door hardware technician or qualified locksmith familiar with panic hardware assemblies. Ensure the door is secured open and all tension is relieved from the exit device mechanism before disassembling the lever arm. Refer to the Von Duprin 88 Series service manual for proper assembly sequence. Installation must comply with applicable local building codes and NFPA 80 requirements for fire-rated door assemblies where applicable.
