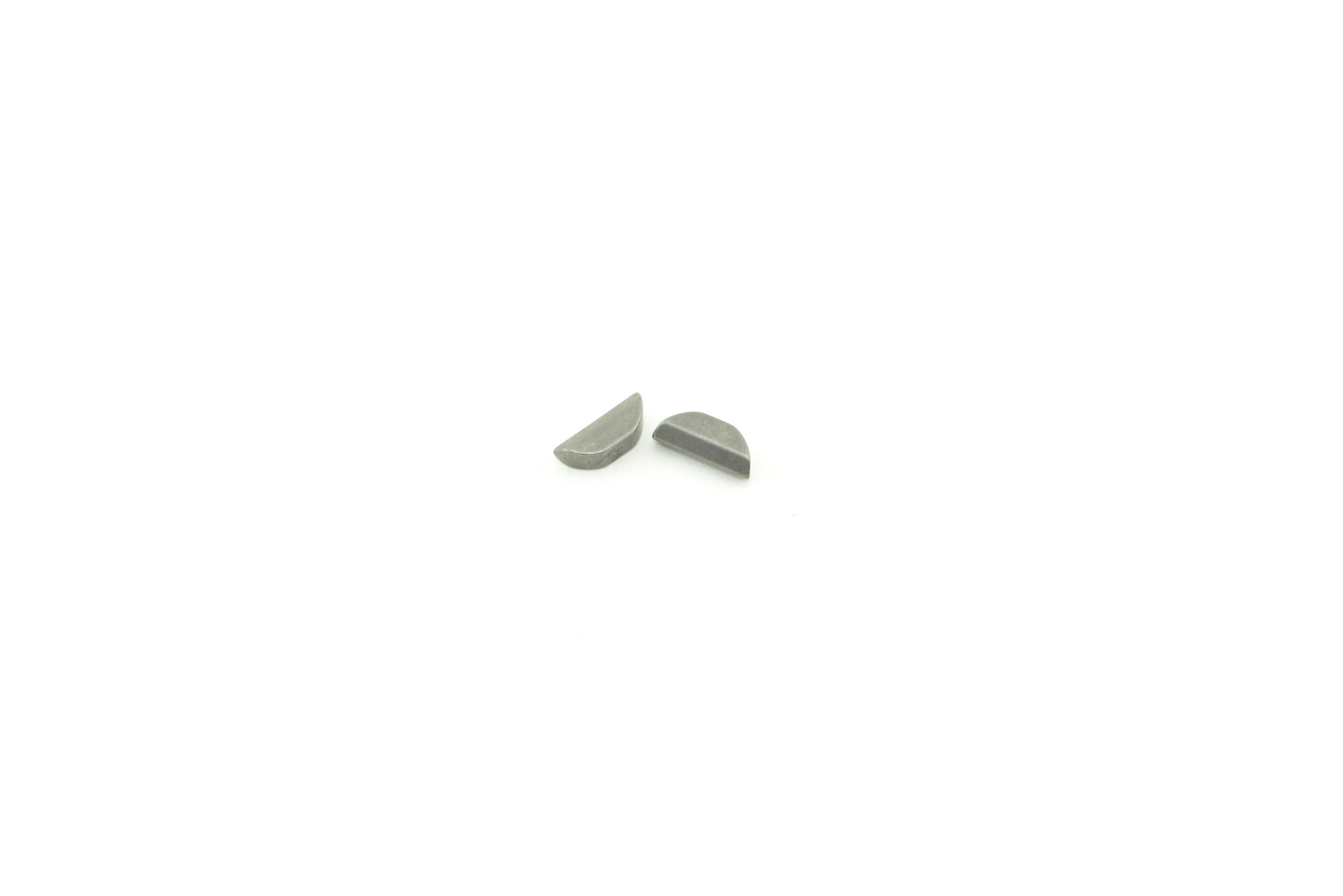

Von Duprin 090020 Crossbar Tube Attaching Wedges 2-pack

Product Description

The VON DUPRIN 090020 is a pack of two crossbar tube attaching wedges designed to secure the crossbar tube assembly on Von Duprin exit devices. These wedges maintain proper alignment and a tight fit between the crossbar tube and the push pad or crossbar assembly, preventing movement and ensuring consistent operation of the exit device. Installers and door hardware technicians working on commercial panic hardware will find these wedges essential for maintaining exit device integrity. Each pack contains two wedges and ships as a single unit. The wedges measure 5 inches in length and 3 inches in width with a profile height of 0.3 inches.

These attaching wedges are used in commercial and institutional door hardware applications where Von Duprin exit devices are installed. Typical installation scenarios include hospitals, schools, office buildings, and other public facilities where panic hardware is required to meet life safety codes. They are intended for use during new installation or as replacement components during routine maintenance or repair of existing exit device assemblies.

Key Features

• Pack of 2 wedges per unit — provides a spare or covers a double-door application in a single order
• Secures crossbar tube to the exit device assembly for consistent hardware operation
• Low-profile design at 0.3 inches height for flush fitment within the exit device
• Compact footprint: 5 inches long by 3 inches wide
• Lightweight at 0.05 pounds per pack for easy handling during installation

Compatibility

Designed as OEM-style replacement attaching wedges for Von Duprin exit devices that use a crossbar tube assembly. Confirm compatibility with the specific exit device model before ordering.

Installation Notes

Installation is performed by a licensed door hardware technician or qualified locksmith familiar with Von Duprin panic hardware. Disengage the exit device and relieve any spring tension before disassembling the crossbar tube assembly. Follow the applicable exit device installation instructions and ensure the finished installation complies with local life safety codes and NFPA 101 requirements. Do not modify the wedges, as altered components may compromise the mechanical operation of the exit device.
