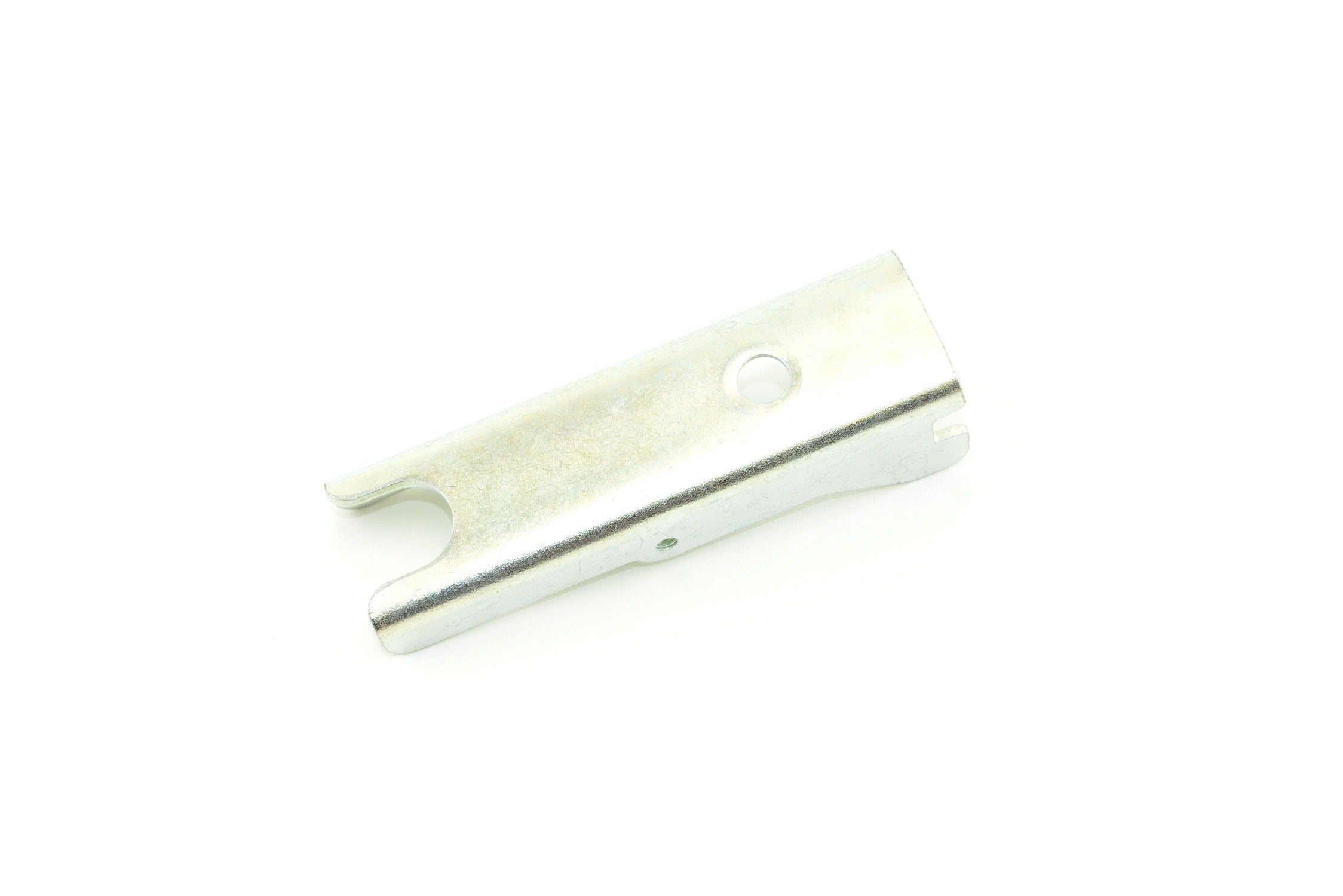

Von Duprin 050546 Latch Mounting Bracket Kit Exit Devices

Product Description

The VON DUPRIN 050546 is a latch mounting bracket kit designed to secure and position the latch assembly within compatible Von Duprin exit device series. This hardware component provides the structural interface between the latch mechanism and the exit device chassis, maintaining precise latch alignment during repeated operation. At 4.5 inches long, 1.5 inches wide, and 1.25 inches tall, it is a compact but load-bearing part of the exit device assembly. Weighing 0.3 pounds, it ships as a single unit. Installation is typically performed by licensed locksmiths, door hardware specialists, or commercial contractors during new installation or field service of panic hardware on commercial and institutional door assemblies.

This bracket kit is intended for use with the Von Duprin 22, 33, 35, 98, and 9927 series exit devices. These series are commonly found on commercial and institutional doors including schools, hospitals, office buildings, and other public facilities where code-compliant panic hardware is required. The bracket supports proper latch function in both rim and mortise exit device configurations typical of these product families, and is the correct replacement or repair component when the original mounting bracket is worn, bent, or damaged.

Key Features

• Engineered fit for Von Duprin 22, 33, 35, 98, and 9927 series exit devices
• Compact dimensions: 4.5 inches long, 1.5 inches wide, 1.25 inches tall
• Lightweight at 0.3 pounds for straightforward field handling
• Single-unit (EA) packaging for direct replacement use
• Maintains latch alignment under repeated panic hardware cycling

Compatibility

Designed for use with Von Duprin 22, 33, 35, 98, and 9927 series exit devices as a latch mounting bracket replacement or repair component.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with commercial exit device service. Disengage the door from active use and ensure the exit device is fully unloaded before disassembling the latch mechanism. Refer to the applicable Von Duprin installation instructions for the specific series being serviced to confirm correct bracket orientation and fastener requirements. Verify that the completed installation meets applicable local building and life-safety code requirements before returning the door to service.
