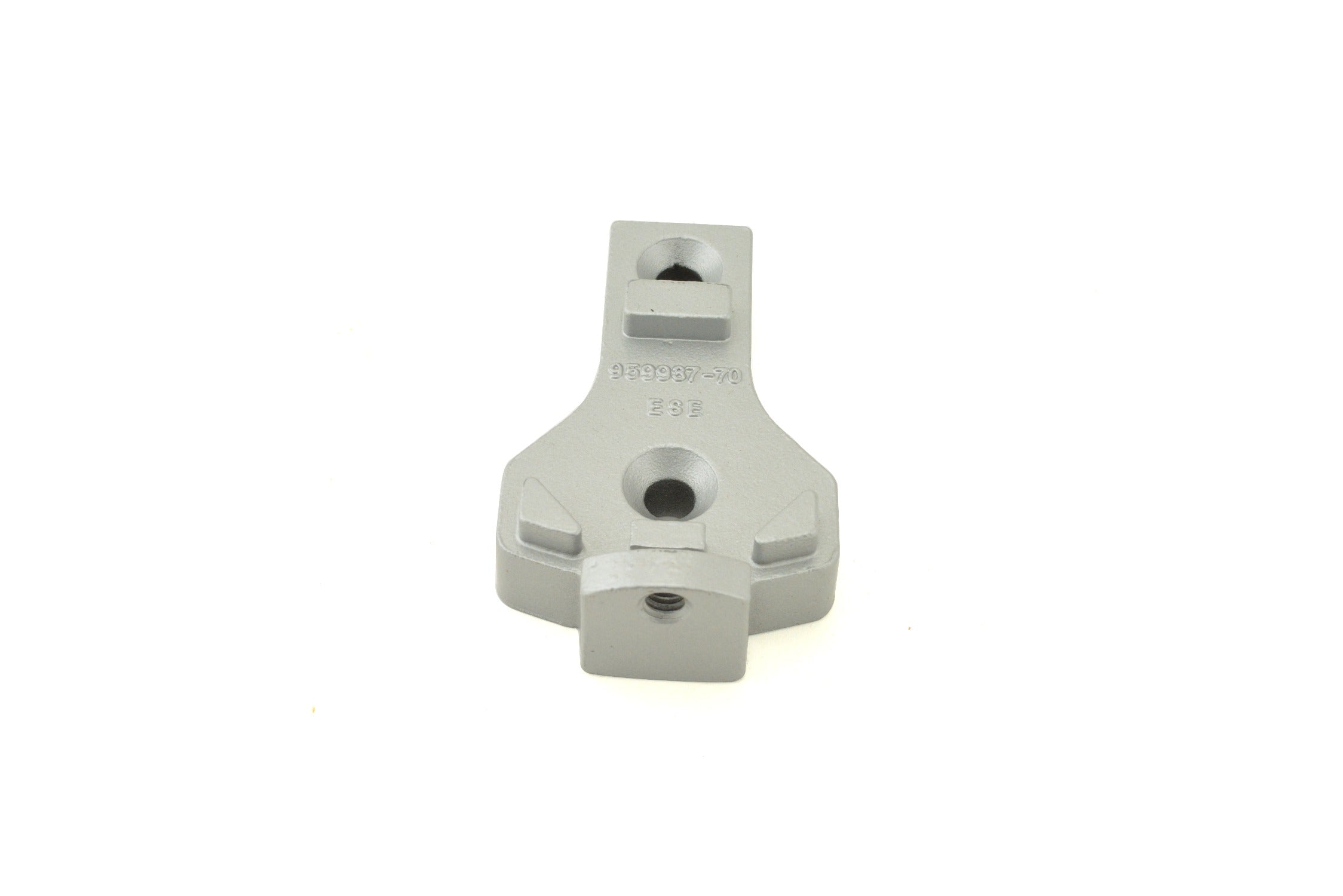

Von Duprin 05019028 Bottom Fitting 5654 5754 Aluminum

Product Description

The VON DUPRIN 05019028 is a bottom fitting designed for use with the 5654 and 5754 series exit device touchbars. This fitting serves as a lower mounting and pivot point component, securing the touchbar assembly to the door at the bottom rail position. It ships in a 689 aluminum finish, making it suitable for installations where an aluminum or silver-tone hardware finish is specified. The part measures 8.43 inches in length, 3.54 inches in width, and 1.73 inches in height, and weighs 0.8 pounds. Installation is handled by licensed locksmiths, door hardware specialists, or commercial door contractors working on exit device service or replacement.

This bottom fitting applies to commercial and institutional door hardware installations where Von Duprin 5654 or 5754 series concealed vertical rod exit devices are in service. These exit device series are commonly found on pairs of doors in public buildings, schools, healthcare facilities, and commercial offices. The 689 aluminum finish coordinates with aluminum-framed doors and storefront systems. This fitting is typically replaced during exit device refurbishment, after mechanical wear, or when damage to the original component is identified during a service inspection.

Key Features

• Direct replacement bottom fitting for 5654 and 5754 series Von Duprin exit devices
• 689 aluminum finish for compatibility with aluminum door hardware specifications
• Compact form factor: 8.43 inches long, 3.54 inches wide, 1.73 inches tall
• Sold as a single unit, suitable for targeted component-level repair
• Lightweight at 0.8 pounds for easy handling during installation

Compatibility

Designed for use with Von Duprin 5654 and 5754 series exit devices as stated in the product data. Verify device series and finish code on the existing hardware before ordering.

Installation Notes

Installation should be performed by a qualified locksmith or commercial door hardware technician. Before servicing the exit device, ensure the door is secured in an open position and that any connected access control or electric strike circuits are de-energized. Follow the applicable door hardware manufacturer instructions and local building code requirements, including those governing egress hardware per NFPA 101. Do not modify the fitting or force fit it to device series not listed in the compatibility data.
