Vogt Valves 12111sw 3/4 Gate Valve 800#

Product Description

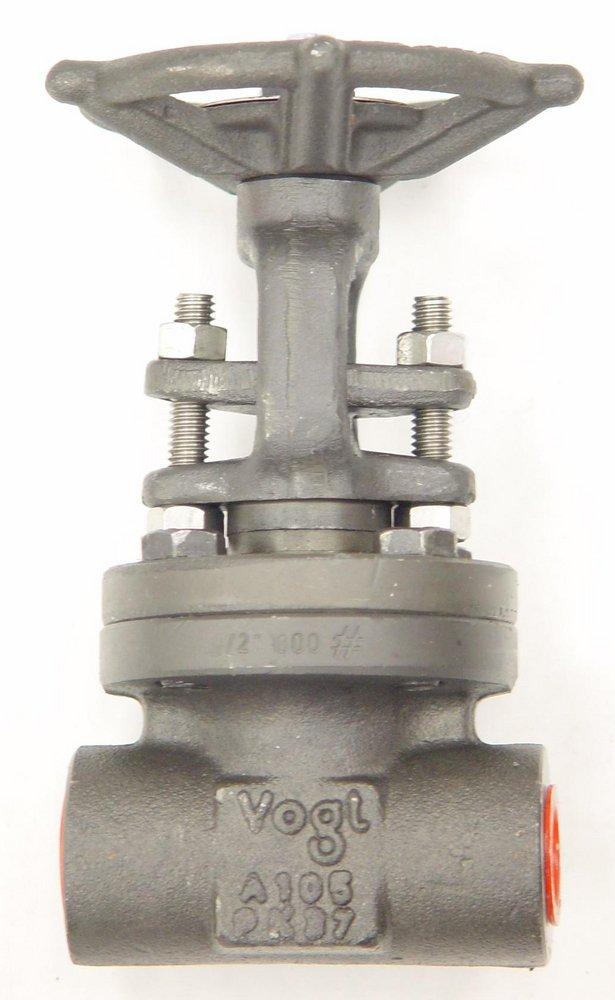

The Vogt Valves 12111SW 3/4 is a gate valve featuring a round bolted bonnet and spiral wound gasket. Designed with an outside screw & yoke, bolted gland, and solid wedge. Hard faced seats ensure durability. Compliant with API 602 and ASME B16.34 standards, this valve is suitable for water applications.

• Round bolted bonnet
• Spiral wound gasket
• Outside screw & yoke

Product Highlights

The Vogt Valves 12111SW 3/4 gate valve is made from forged steel with a standard port and rising stem, ideal for water applications.

Product Information

Standard Information

• Brand: VOGT VALVES
• Manufacturer Part Number: 12111SW 3/4
• Country of Origin: United States

Technical Specifications

• API: API 602
• ASME: ASME B16.34
• ASTM: ASTM A105
• Coating: Hardfaced
• Collection: 12111
• End Connection 1: Socket Weld
• End Connection 2: Socket Weld
• End Connections: Socket Weld
• FM Approved: No
• Handle Length (in): 4
• Length: 3-19/50
• Material: Forged Steel, Stainless Steel
• Material Type: A105, CR 13
• Maximum Temperature: 100
• NSF Certified: No
• Pressure Class: 800#, 1975#
• Recommended Valve Application: Water
• UL Listed: No
• Valve Body Material: Forged Steel
• Valve Body Style: Socket Weld
• Valve Bonnet Type: Bolted
• Valve Operator: Handwheel
• Valve Port Opening: Standard Port
• Valve Seat Material: Cr-13
• Valve Size: 3/4 in
• Valve Stem: Rising
• Valve Type: Gate Valve
