Vogt Valves 12111SW 1 Gate Valve 1 in. 800#

Product Description

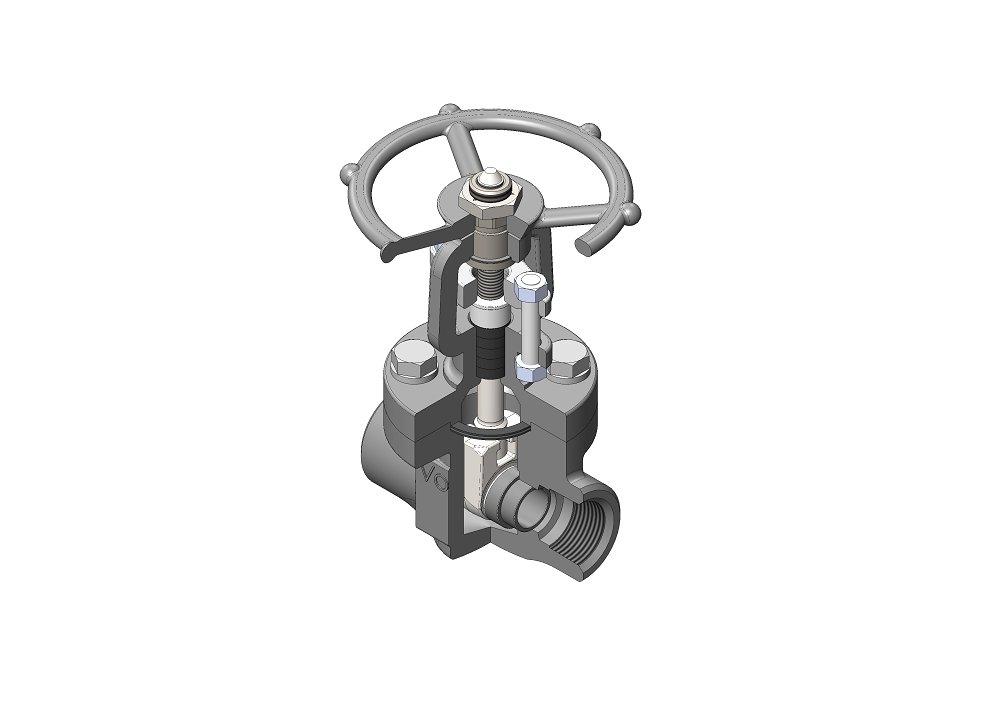

The VOGT VALVES 12111SW 1 is a 1 in. 800# Gate Valve featuring a reduced port, bolted bonnet, and forged steel construction. Conforming to API 602 and ASME B16.34 standards, this valve is suitable for various industrial applications. It features hard-faced seats and a solid wedge design. The valve is designed with socket weld end connections.

• Features a spiral wound gasket
• Includes a round bolted bonnet and bolted gland
• Designed with hard faced seats and a solid wedge

Product Highlights

Forged steel gate valve with socket weld connections, ideal for high-pressure applications.

Product Information

Standard Information

• Brand: VOGT VALVES
• Manufacturer Part Number: 12111SW 1

Technical Specifications

• API: API 602
• ASME: ASME B16.34
• ASTM: ASTM A105
• Coating: Hardfaced
• Collection: Series 12111
• End Connection 1: Socket Weld
• End Connection 2: Socket Weld
• End Connections: Socket Weld
• Handle Length (in): 4-3/4
• Length: 4
• Material: Forged Steel
• Material Type: A105
• Maximum Temperature: 100
• Pressure - Maximum: 1975 psi
• Pressure Class: 800#
• Valve Body Material: Forged Steel
• Valve Body Style: Socket Weld
• Valve Bonnet Type: Bolted
• Valve Operator: Handwheel
• Valve Port Opening: Standard Port
• Valve Size: 1 in
• Valve Stem: Outside
• Valve Type: Gate Valve
