Vogt Valves 12111.375 Forged Steel Threaded Gate Valve 3/8 In (3812111T)

Product Description

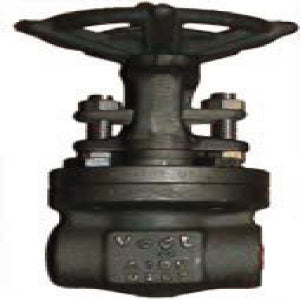

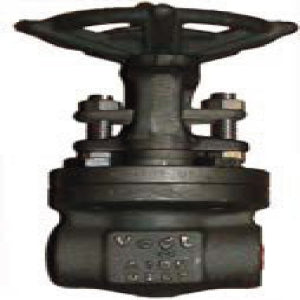

Vogt Valves 12111.375 is a forged steel threaded gate valve with a nominal size of 3/8 in and a conventional port design rated 1975 psi at 100 F. It has a round bolted bonnet with a spiral wound gasket, outside screw and yoke actuation, bolted gland, solid wedge, and hard-faced seats. Construction conforms to ASME B16.34 for industrial high-pressure applications where threaded isolation valves are required.

• Forged steel body, nominal size 3/8 in, threaded connection
• Pressure rating 1975 psi at 100 F with conventional port design
• Round bolted bonnet with spiral wound gasket, outside screw and yoke, bolted gland, solid wedge, hard-faced seats; ASME B16.34

Product Highlights

3/8 in forged steel threaded gate valve; 1975 psi @ 100 F; ASME B16.34

Product Information

Standard Information

• Brand: VOGT VALVES
• Manufacturer Part Number: 12111.375

Technical Specifications

• Brand: Vogt Valves
• Manufacturer: Vogt Valves
• MPN: 12111.375
• Replacement Part Number: 3812111T
• Body Material: Forged Steel
• Connection Type: Threaded
• Nominal Size: 3/8 In
• Port Design: Conventional port
• Pressure Rating: 1975 psi @ 100 F
• Standards: ASME B16.34
• Bonnet: Round bolted bonnet
• Gasket: Spiral wound gasket
• Actuation: Outside screw and yoke
• Gland: Bolted gland
• Wedge: Solid wedge
• Seats: Hard-faced seats
