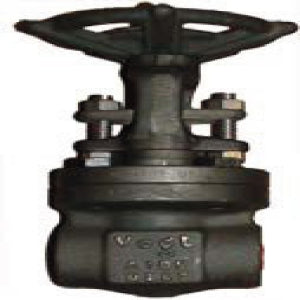

Vogt Valves 12111.25 Forged Steel Threaded Gate Valve (1/4 in)

Product Description

Vogt Valves 12111.25 is a forged steel threaded gate valve with a 1/4 inch nominal size, rated 1975 psi at 100�F. It features a conventional port design with a round bolted bonnet and spiral wound gasket, outside screw and yoke (OS&Y) stem, bolted gland, solid wedge disc, and hard-faced seats. The valve is manufactured to conform to ASME B16.34 for pressure-containing components.

• 1/4 in nominal size; forged steel body; pressure rating 1975 psi at 100�F
• Round bolted bonnet with spiral wound gasket; bolted gland; outside screw and yoke (OS&Y) stem
• Solid wedge disc and hard-faced seats; conforms to ASME B16.34

Product Highlights

Forged steel threaded gate valve for high-pressure isolation with OS&Y stem and ASME B16.34 compliance

Product Information

Standard Information

• Brand: VOGT VALVES
• Manufacturer Part Number: 12111.25

Technical Specifications

• Manufacturer: Vogt Valves
• Brand: Vogt
• Manufacturer Part Number: 12111.25
• Part Number: 1412111T
• Body Material: Forged steel
• Nominal Size: 1/4 in
• Pressure Rating: 1975 psi at 100�F
• Port Type: Conventional port
• Bonnet Type: Round bolted bonnet
• Gasket: Spiral wound gasket
• Stem/Actuation: Outside screw and yoke (OS&Y)
• Gland: Bolted gland
• Wedge Type: Solid wedge
• Seats: Hard-faced seats
• Standards: ASME B16.34
