Vogt Valves 12111 1 1/2 Series 12111 1-1/2 in. 800# Gate Valve

Product Description

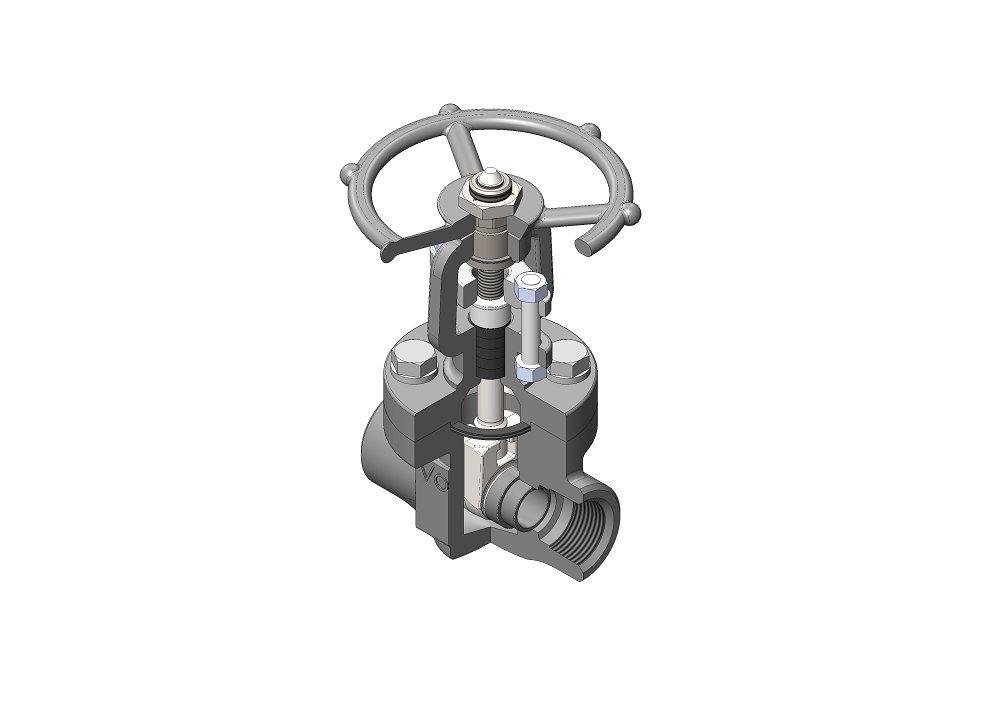

The Vogt Valves 12111 1 1/2 is a 1-1/2 in. 800# Thrd A105 T8 Gate Valve Reduced Port Bolted Bonnet Forged Steel. Constructed with forged steel, this valve is designed to handle a maximum pressure of 1975 psi. It adheres to API 602 and ASME B16.34 standards.

• Spiral wound gasket
• Round bolted bonnet
• Bolted gland

Product Highlights

Features include hard faced seats, a solid wedge, and a standard port valve opening.

Product Information

Standard Information

• Brand: VOGT VALVES
• Manufacturer Part Number: 12111 1 1/2
• Country of Origin: United States

Technical Specifications

• API: API 602
• ASME: ASME B16.34
• ASTM: ASTM A105
• Coating: Hardfaced
• Collection: Series 12111
• End Connection 1: FPT
• End Connection 2: FPT
• End Connections: FPT
• Handle Length (in): 5-3/4
• Length: 4-3/4
• Material: Forged Steel
• Material Type: A105
• Maximum Temperature: 100
• Pressure - Maximum: 1975 psi
• Pressure Class: 800#
• Valve Body Material: Forged Steel
• Valve Body Style: Threaded
• Valve Bonnet Type: Bolted
• Valve Operator: Handwheel
• Valve Port Opening: Standard Port
• Valve Size: 1-1/2 in
• Valve Stem: Outside
• Valve Type: Gate Valve
• Brand: FLOWSERVE
• MPN: 12111
• Country of Origin: United States
