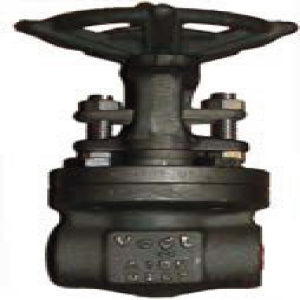

Vogt 12111SW2 Gate Valve Class 800 2 In Socket Weld

Product Description

The Vogt 12111SW2 is a Class 800 forged carbon steel gate valve designed for reliable operation in high-pressure systems. This valve features a two-inch socket weld connection and is built to handle up to 1975 psi at one hundred degrees Fahrenheit. The durable construction ensures a long service life, making it suitable for industrial applications where performance is critical.

• Pressure class of 800 for heavy-duty applications
• Metal-to-metal seating for wide pressure and temperature range
• Rugged forged carbon steel construction for reliability

Product Highlights

This gate valve is designed to operate in fully open or fully closed positions, allowing fluid flow with minimal turbulence.

Product Information

Standard Information

• Brand: Vogt Valves
• Part Number: VO12111SW.2

Technical Specifications

• Connection Size: 2 in
• Connection Type: Socket Weld
• Dimension: 5-1/4 in Length
• Flow Coefficient: 117.6 Cv
• Material Specifications: ASTM A105
• Material: Forged Carbon Steel
• Pressure Class: Class 800
• Pressure Rating: 1975 psi
• Temperature Rating: 100 degrees Fahrenheit
• Standards/Certifications: ASME B16.34, API 602 certified
