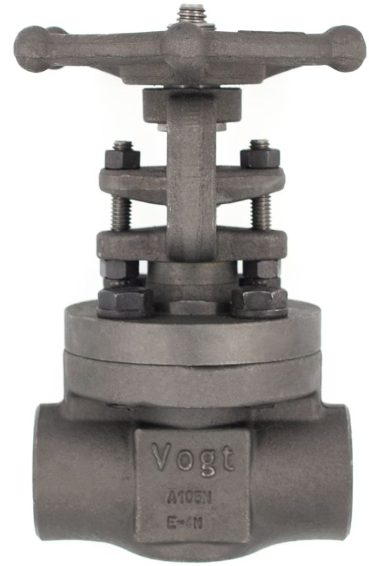

Vogt 12111SW1 Gate Valve Class 800 1 in Socket Weld

Product Description

The Vogt 12111SW1 is a Class 800 forged carbon steel gate valve with a socket weld connection, designed for reliable control in fluid systems. This valve operates in full open or closed positions, allowing media flow with minimal turbulence. It is built to withstand high pressure and temperature conditions, making it suitable for various industrial applications.

• Designed for minimal pressure drop when open
• Constructed from durable forged carbon steel
• Metal-to-metal seating supports varied pressure-temperature conditions

Product Highlights

This gate valve features a robust design and is ideal for applications requiring dependable performance. Its forged construction ensures a longer service life.

Product Information

Standard Information

• Brand: Vogt
• Manufacturer: Vogt Valves

Technical Specifications

• Connection Size: 1 in
• Connection Type: Socket Weld
• Pressure Class: Class 800
• Pressure Rating: 1975 psi
• Temperature Rating: 100 deg F
• Dimension: 4 in L
• Flow Coefficient: 20.3 Cv
• Material: Forged Carbon Steel (ASTM A105)
• Standards/Certifications: ASME B16.34, API 602 certified
